Description

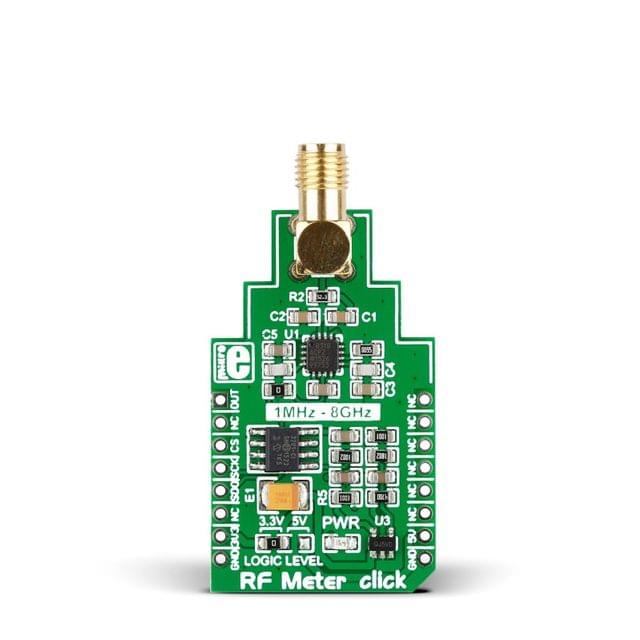

RF Meter click is a radio frequency power measurement device covering a frequency span from 1 MHz to 8 GHz over a 60 dB range (approximately). It enables monitoring and measuring frequency levels to ensure proper functioning and leak detection. An external antenna acquires the signal, which is then processed by the AD8318 logarithmic detector. The resulting voltage is fed into an MCP3201 ADC. For communicating with the target board MCU, the mikroBUS SPI interface is used (CS, SCK, MISO pins), with additional TEMP OUT pin.
Specification
| Type | RF meter |
| Applications | Radio frequency meters are usually used for testing equipment that includes RF transmitters or relays. It enables monitoring and measuring frequency levels to ensure proper functioning and leak detection |
| On-board modules | AD8318 logarithmic detector |
| Key Features | MCP3201 ADC |
| Key Benefits | 1 MHz to 8 GHz frequency range. Separate temperature output |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
- Home
- RF Meter click
RF Meter click
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5abb8ba469f24ac8bfc78b6c/images/5abb8ba469f24ac8bfc78b6d/5abb8a447d9062c86e29452d/5abb8a447d9062c86e29452d.jpg
Description of product
Description
RF Meter click is a radio frequency power measurement device covering a frequency span from 1 MHz to 8 GHz over a 60 dB range (approximately). It enables monitoring and measuring frequency levels to ensure proper functioning and leak detection. An external antenna acquires the signal, which is then processed by the AD8318 logarithmic detector. The resulting voltage is fed into an MCP3201 ADC. For communicating with the target board MCU, the mikroBUS SPI interface is used (CS, SCK, MISO pins), with additional TEMP OUT pin.
Specification
| Type | RF meter |
| Applications | Radio frequency meters are usually used for testing equipment that includes RF transmitters or relays. It enables monitoring and measuring frequency levels to ensure proper functioning and leak detection |
| On-board modules | AD8318 logarithmic detector |
| Key Features | MCP3201 ADC |
| Key Benefits | 1 MHz to 8 GHz frequency range. Separate temperature output |
| Interface | GPIO,SPI |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
