5a940e904f5b513a433776af RN4678 click https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a940e904f5b513a433776af/images/5a940e904f5b513a433776b0/5a9406b0b8c5e5a11d672a7b/5a9406b0b8c5e5a11d672a7b.jpg

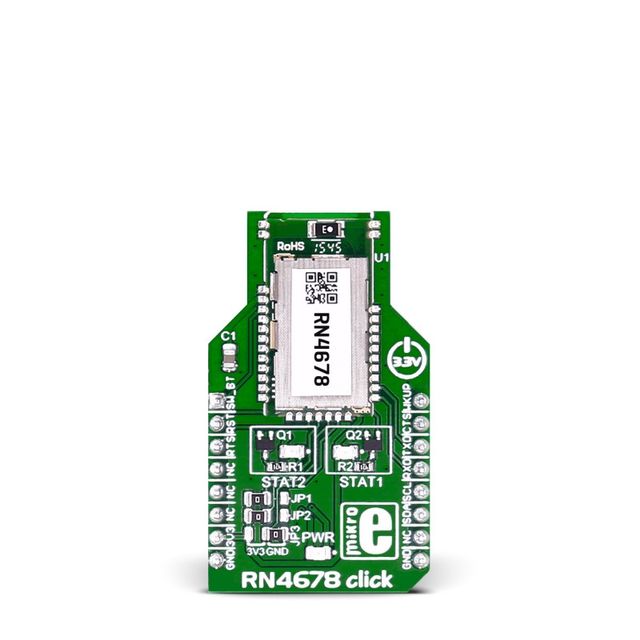

RN4678 click carries the RN4678 Bluetooth® 4.2 dual mode module from Microchip. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C and UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, CS, PWM, INT.

RN4678 module features

The RN4678 from Microchip is a fully certified, Bluetooth version 4.2 module. Use it to add Bluetooth wireless capability to your project.The module includes an on-board Bluetooth stack, power management subsystem, 2.4 GHz transceiver, and RF power amplifier.Data transfer is achieved through the Bluetooth link by sending or receiving data through SPP in Bluetooth (BT) Classic mode and through Transparent UART in the BLE mode.The RN4678 contains an integral ceramic chip antenna.The RN4678 module has strong AES128 Encryption. A 128-bit encryption is one of the most powerfull encryption algorithms. AES stands for Advanced Encryption Standard and it is a symmetric encryption algorithm.

Specifications

Type Bluetooth,BLE
Applications Internet of Things (IoT), secure payment, home and security, health and fitness, industrial and data logger, LED lighting, etc.
On-board modules RN4678 module from Microchip
Key Features Frequency: 2.402 GHz to 2.480 GHz, RX Sensitivity: -90 dBm (BR/EDR), -92 dBm (LE), Bluetooth SIG 4.2 Qualified
Interface UART,GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)










            TT-MK-MIKROE-2545


                in stock

                INR
                3820.663




                MIKROELECTRONICA





                1
                1







































































































































































    RN4678 click


























     RN4678 click



    Sku:
                                    TT-MK-MIKROE-2545






                                        Be
                                    the first to review this product






















    ₹3,820.66
























































                                             Add to Cart
                                             Buy Now
















     Sold By:

                                            tenettech











    Features






    • Shipping in 10-12 Working days
    • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a940e904f5b513a433776af/images/5a940e904f5b513a433776b0/5a9406b0b8c5e5a11d672a7b/5a9406b0b8c5e5a11d672a7b.jpg
      •























































     Description of product






    RN4678 click carries the RN4678 Bluetooth® 4.2 dual mode module from Microchip. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C and UART interface, with additional functionality provided by the following pins on the mikroBUS™ line: AN, RST, CS, PWM, INT.


    RN4678 module features


    The RN4678 from Microchip is a fully certified, Bluetooth version 4.2 module. Use it to add Bluetooth wireless capability to your project.The module includes an on-board Bluetooth stack, power management subsystem, 2.4 GHz transceiver, and RF power amplifier.Data transfer is achieved through the Bluetooth link by sending or receiving data through SPP in Bluetooth (BT) Classic mode and through Transparent UART in the BLE mode.The RN4678 contains an integral ceramic chip antenna.The RN4678 module has strong AES128 Encryption. A 128-bit encryption is one of the most powerfull encryption algorithms. AES stands for Advanced Encryption Standard and it is a symmetric encryption algorithm.


    Specifications








Type
Bluetooth,BLE




Applications
Internet of Things (IoT), secure payment, home and security, health and fitness, industrial and data logger, LED lighting, etc.




On-board modules
RN4678 module from Microchip




Key Features
Frequency: 2.402 GHz to 2.480 GHz, RX Sensitivity: -90 dBm (BR/EDR), -92 dBm (LE), Bluetooth SIG 4.2 Qualified




Interface
UART,GPIO,I2C




Input Voltage
3.3V




Compatibility
mikroBUS




Click board size
M (42.9 x 25.4 mm)
