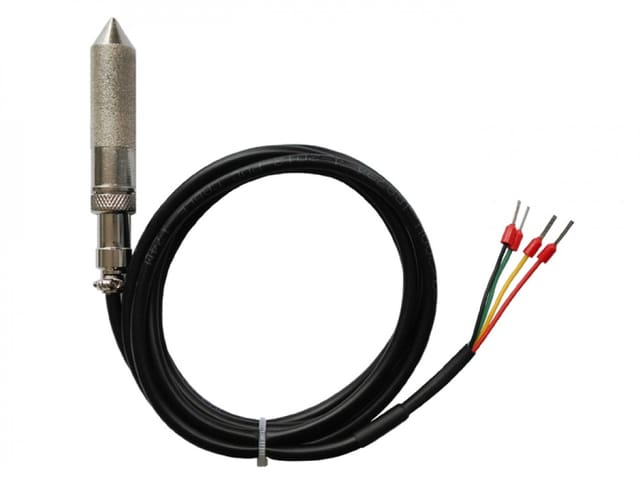

6173b50e04e463fb4af461b2 Soil Temperature and Humidity Sensor SHT20 https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/6173b4fb9645c422d69907e4/webp/soil-temperature-and-humidity-sensor-sht20.jpg

Description:

The sensor includes a temperature/humidity sensor module in a sinter metal mesh encasing. The casing is weatherproof and will keep water from seeping into the body of the sensor and damaging it, but allows air to pass through so that it can measure the humidity (moisture) of the soil. It is designed to be submersible in water, but it's always best to avoid long-term (over 1 hour at a time) submersion if you need something that can be submerged for over an hour you may want to find a different sensor. It can also be simply placed outside for exterior weather sensing.

The sensor is essentially just an SHT-20 with the 4 data/power wires brought out so any SHT-2X code for a microcontroller will work. The sensor works with 3.3V logic. The 1-meter long cable has four wires: Red = VCC (3-3.7VDC), Black = GND, Yellow = SCK, Green = SDA.

Features:

  • Working voltage: 3-3.7V
  • Working current: ≤15mA
  • Humidity measurement range: 0 ~ 100% RH
  • Temperature measurement range: -40 ~ 125 ℃
  • Humidity measurement accuracy: ± 3% RH
  • Temperature measurement accuracy: ± 0.5 ℃
  • Working environment humidity: 0 ~ 99% RH
  • Working environment temperature: -40 ~ + 90 ℃
  • Cable: 4 × 0.12mm² shielded cable, 1.5 meters in length

Package List:

  • 1 x Soil Temperature and Humidity Sensor SHT20

TT-MF-MSE020STH
in stock INR 2280
Makerfabs
1 1

Soil Temperature and Humidity Sensor SHT20

Sku: TT-MF-MSE020STH
₹2,280


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

The sensor includes a temperature/humidity sensor module in a sinter metal mesh encasing. The casing is weatherproof and will keep water from seeping into the body of the sensor and damaging it, but allows air to pass through so that it can measure the humidity (moisture) of the soil. It is designed to be submersible in water, but it's always best to avoid long-term (over 1 hour at a time) submersion if you need something that can be submerged for over an hour you may want to find a different sensor. It can also be simply placed outside for exterior weather sensing.

The sensor is essentially just an SHT-20 with the 4 data/power wires brought out so any SHT-2X code for a microcontroller will work. The sensor works with 3.3V logic. The 1-meter long cable has four wires: Red = VCC (3-3.7VDC), Black = GND, Yellow = SCK, Green = SDA.

Features:

  • Working voltage: 3-3.7V
  • Working current: ≤15mA
  • Humidity measurement range: 0 ~ 100% RH
  • Temperature measurement range: -40 ~ 125 ℃
  • Humidity measurement accuracy: ± 3% RH
  • Temperature measurement accuracy: ± 0.5 ℃
  • Working environment humidity: 0 ~ 99% RH
  • Working environment temperature: -40 ~ + 90 ℃
  • Cable: 4 × 0.12mm² shielded cable, 1.5 meters in length

Package List:

  • 1 x Soil Temperature and Humidity Sensor SHT20
