5d70d281082b5a73e1c30ff8 STK128+ Premium, AVR Development Board https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d70d281082b5a73e1c30ff8/images/5d70d281082b5a73e1c30ffe/5d70d22cc4fd2b72d7179547/5d70d22cc4fd2b72d7179547.jpg

Description

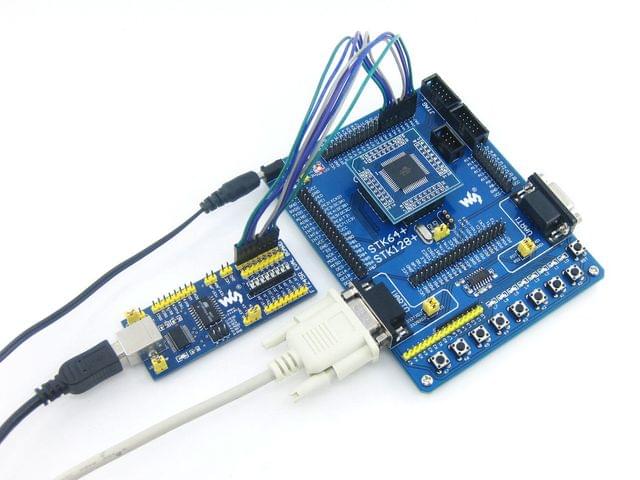

The STK128+ is a complete, cost-effective development board for the ATmega128. It is designed to give designers a quick start to develop code on ATmega128 MCU and makes them develope prototype device easily.

The ATmega128 chip is mounted on a device board, which can be separated from the mother board. Hence, easily changing MCU is supported. The ATmega128 chip is in TQFP64 package and will randomly be ATmega128-16AU or ATmega128L-8AU or ATmega128A-AU.

Features

  • Power
    • Powered from external 5V power supply
    • Jumper for configuring voltage level to be applied, 5V/3.3V
  • Onboard Chips
    • ATmega128 (TQFP64), MCU, mounted on the device board
    • AMS1117-3.3, on board regulator
    • MAX3232, True RS232 Transceivers
  • Interfaces
    • Two RS232 connector for UART0 and UART1, DB9 standard
      • Guaranteed to operate under 3V level supply thanks to the MAX3232
      • UART0 and UART1 jumpers, short the jumper to connect UART to AVR MCU, open the jumper to vacate the I/O ports.
    • 6-pin / 10-pin ISP port
    • JTAG port
  • Human to Machine Interface
    • RESET button, used to reset the MCU
    • Power indicator LED
    • 8 surface mounted LEDs, can be used as I/O status indicator
    • 8 Push-buttons, for analog input
  • Other Features
    • Crystal configurable, there is a jumper for selecting on board 7.3728M crystal or external crystal mounted via the socket
    • All the MCU pins are accessible on expansion connectors for further expansion
    • All the pins are marked on the board. These marks describe the function of each pin
    • Compatible with several AVR MCUs:
      • Fully compatible with: ATmega64/ATmega128
      • Partly compatible with: ATmega1281/ATmega2561, AT90CAN32/AT90CAN64/AT90CAN128

Package Includes

  1. STK128+ (with an ATmega128 device board)
  2. USB power cable
  3. 4-pin wire x 2
  4. 2-pin wire x 2
  5. User Guide CD
  6. Spare ATmega128 device board
  7. Experiment Fittings Pack
TT-WSB-3028
in stock INR 5308.82
Waveshare
1 1

STK128+ Premium, AVR Development Board

Sku: TT-WSB-3028
₹5,308.82


Sold By: tenettech
