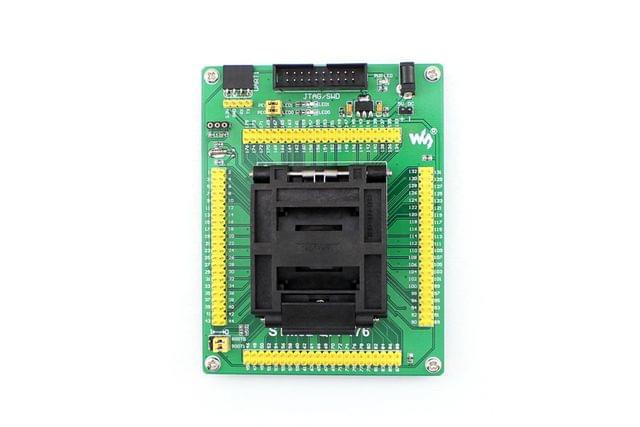

STM32-QFP176, Programmer Adapter
https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b556f65277a20387063b163/images/5d9ec58b8b7a572dbcc68f5f/5d9ec4de66f9142e20783887/5d9ec4de66f9142e20783887.jpg
TT-Ws-10321
Description
Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP176(0.5mm pitch) package
Features
- 20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
- External crystal can be connected via on board socket for system clock
- Onboard 32.768K crystal oscillator
- Two LED indicators for testing, which are connected to the I/O pins via jumpers
- All the MCU pins are accessible on expansion connectors
- pin header pitch: 2.54mm(100mil)
Supported Devices
STM32 microcontroller in QFP176(0.5mm pitch) package with compatible pinouts:
- STM32F2xxI series (STM32F207IG, STM32F217IG, etc.)
- STM32F4xxI series (STM32F407IG, STM32F417IG, etc.)
in stock
INR
WAVESHARE
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- PROGRAMMABLE AUTOMATION CONTROLLER
- STM32-QFP176, Programmer Adapter
STM32-QFP176, Programmer Adapter
Sku:
TT-Ws-10321
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b556f65277a20387063b163/images/5d9ec58b8b7a572dbcc68f5e/5d9ec4d0b826bf67e03b81ee/5d9ec4d0b826bf67e03b81ee.jpg
Description of product
Description
Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP176(0.5mm pitch) package
Features
- 20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
- External crystal can be connected via on board socket for system clock
- Onboard 32.768K crystal oscillator
- Two LED indicators for testing, which are connected to the I/O pins via jumpers
- All the MCU pins are accessible on expansion connectors
- pin header pitch: 2.54mm(100mil)
Supported Devices
STM32 microcontroller in QFP176(0.5mm pitch) package with compatible pinouts:
- STM32F2xxI series (STM32F207IG, STM32F217IG, etc.)
- STM32F4xxI series (STM32F407IG, STM32F417IG, etc.)
