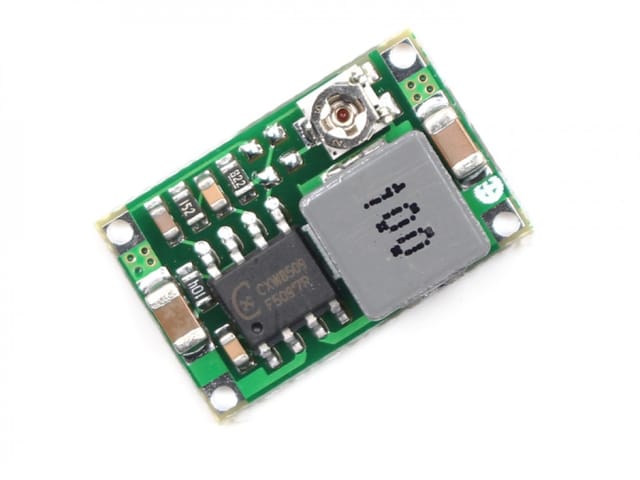

617904d3465a5e81294a7db5 Super Mini DC-DC Module- Mini-360 https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/617904cb5acb8c902d7da358/super-mini-dc-dc-module-mini-360.jpg

Description:

This is a supermini DC-DC module, onboard with adjustable resistance, automatic power failure protection when temperature up to 85℃.

Features:

  • Module Properties: non-isolated buck
  • Rectification: synchronous rectification
  • Input voltage: 4.75V-23V
  • Output voltage: 1.0V-17V
  • Output Current: lowering the value of 3A, long 1.8A
  • Conversion efficiency: 96% (maximum)
  • Switching Frequency: 340KHz
  • Output ripple: 30mV (no-load)
  • Load regulation: 0.5%
  • Voltage regulation: 2.5%
  • Working temperature: -40℃ to +85℃
  • External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

Package List:

  • 1 x Super Mini DC-DC module- Mini-360
TT-MF-MPC360DCM
in stockINR 50.16
Makerfabs
1 1
Super Mini DC-DC Module- Mini-360

Super Mini DC-DC Module- Mini-360

Sku: TT-MF-MPC360DCM
₹50.16


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

This is a supermini DC-DC module, onboard with adjustable resistance, automatic power failure protection when temperature up to 85℃.

Features:

  • Module Properties: non-isolated buck
  • Rectification: synchronous rectification
  • Input voltage: 4.75V-23V
  • Output voltage: 1.0V-17V
  • Output Current: lowering the value of 3A, long 1.8A
  • Conversion efficiency: 96% (maximum)
  • Switching Frequency: 340KHz
  • Output ripple: 30mV (no-load)
  • Load regulation: 0.5%
  • Voltage regulation: 2.5%
  • Working temperature: -40℃ to +85℃
  • External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

Package List:

  • 1 x Super Mini DC-DC module- Mini-360
