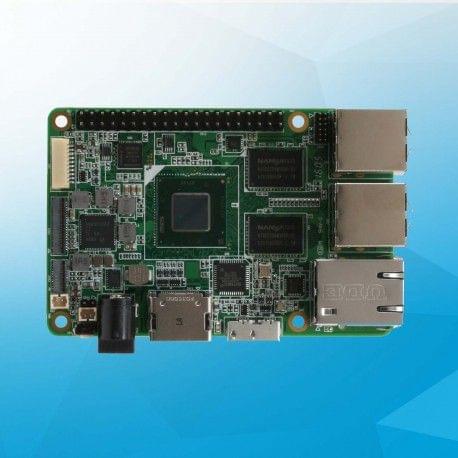

5a9e2c58474407674a081354 UP board 1GB + 16 GB eMMC memory https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a9e2c58474407674a081354/images/5a9e2c58474407674a081355/5a9e2c4f474407674a081315/5a9e2c4f474407674a081315.jpg
UP unleashes the power of the Intel x5-Z8350 QuadCore 1.44Ghz (1.92GHz) 64 bit 2W SDP CPU.

The 40 Pin I/O connector, the USB 3.0 OTG, the Gigabit Ethernet, the HDMI and more other features make it a perfect solution for different domains and products like Robotics, Drone, Machine Vision, Smart Home, Education, Digital Signage, Intelligent Cars, Internet Of Things. The compatibility with Linux, Android, and all the Windows 10 distributions give you great flexibility, scalability and quick time to market.

Offered is one UP board,featuring with X5-Z8350 CPU with 16GB eMMC & 1GB RAM on board.

Box contents:
- UP board
- Heatsink
- RTC battery

Note: This product comes without operating system

UP board version UP
SoC Intel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz
Graphics Intel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8
System memory 1GB DDR3L
Storage capacity 16GB eMMC
USB2.0 external connector x4
USB2.0 port (pin header) x2
USB 3.0 port x1 ( OTG)
Ethernet 1x Gb Ethernet (full speed) RJ-45
Video output HDMI
Display interface DSI / eDP
Camera Interface MIPI-CSI
Power input 5V DC-in @ 3A 5.5/2.1mm jack
RTC YES
PXE NO
WOL YES
Operating humidity 10%～80%RH non-condensing
Operating tempature 32-140°F / 0~60°C
Expansion 40 pin General Purpose bus, supported by Altera Max V. ADC 8-bit@188ksos
Compatible operating system Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
Certificate CE/FCC Class A, RoHS complaint Microsoft Azure certified
Dimension 3.37" x 2.22" / 85.60 mm × 56.5 mm
Net Weight (without package) 80 gram (w/ passive heatsink)
CEC No
HS code 8473300000
package dimension 15*9*5 cm
Gross weight 140 gram
Country of Origin Taiwan
TT-UP- RE-UP-CHT01-A10-0116
out of stock INR
UP.ORG
1 1
UP board 1GB + 16 GB eMMC memory

UP board 1GB + 16 GB eMMC memory

Sku: TT-UP- RE-UP-CHT01-A10-0116
Be the first to review this product
Sold Out
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a9e2c58474407674a081354/images/5a9e2c58474407674a081355/5a9e2c4f474407674a081315/5a9e2c4f474407674a081315.jpg

Description of product

UP unleashes the power of the Intel x5-Z8350 QuadCore 1.44Ghz (1.92GHz) 64 bit 2W SDP CPU.

The 40 Pin I/O connector, the USB 3.0 OTG, the Gigabit Ethernet, the HDMI and more other features make it a perfect solution for different domains and products like Robotics, Drone, Machine Vision, Smart Home, Education, Digital Signage, Intelligent Cars, Internet Of Things. The compatibility with Linux, Android, and all the Windows 10 distributions give you great flexibility, scalability and quick time to market.

Offered is one UP board,featuring with X5-Z8350 CPU with 16GB eMMC & 1GB RAM on board.

Box contents:
- UP board
- Heatsink
- RTC battery

Note: This product comes without operating system

UP board version UP
SoC Intel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz
Graphics Intel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8
System memory 1GB DDR3L
Storage capacity 16GB eMMC
USB2.0 external connector x4
USB2.0 port (pin header) x2
USB 3.0 port x1 ( OTG)
Ethernet 1x Gb Ethernet (full speed) RJ-45
Video output HDMI
Display interface DSI / eDP
Camera Interface MIPI-CSI
Power input 5V DC-in @ 3A 5.5/2.1mm jack
RTC YES
PXE NO
WOL YES
Operating humidity 10%～80%RH non-condensing
Operating tempature 32-140°F / 0~60°C
Expansion 40 pin General Purpose bus, supported by Altera Max V. ADC 8-bit@188ksos
Compatible operating system Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
Certificate CE/FCC Class A, RoHS complaint Microsoft Azure certified
Dimension 3.37" x 2.22" / 85.60 mm × 56.5 mm
Net Weight (without package) 80 gram (w/ passive heatsink)
CEC No
HS code 8473300000
package dimension 15*9*5 cm
Gross weight 140 gram
Country of Origin Taiwan
