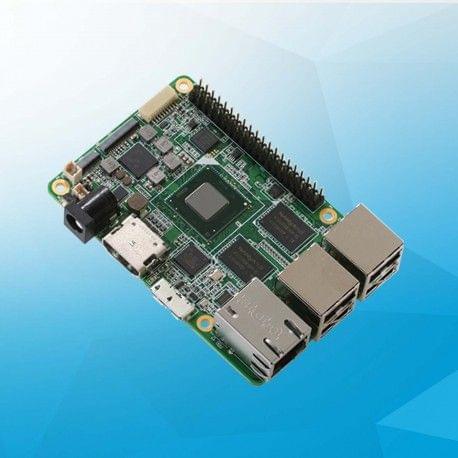

5a9e32ec474407674a0832cf UP board 2GB + 32 GB eMMC memory https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a9e32ec474407674a0832cf/images/5a9e32ec474407674a0832d0/5a9e328c4484e129e347be51/5a9e328c4484e129e347be51.jpg

UP unleashes the power of the Intel x5-Z8350 QuadCore 1.44Ghz (1.92GHz) 64 bit 2W SDP CPU.

The 40 Pin I/O connector, the USB 3.0 OTG, the Gigabit Ethernet, the HDMI and more other features make it a perfect solution for different domains and products like Robotics, Drone, Machine Vision, Smart Home, Education, Digital Signage, Intelligent Cars, Internet Of Things. The compatibility with Linux, Android, and all the Windows 10 distributions give you great flexibility, scalability and quick time to market.

Offered is one UP board,featuring with X5-Z8350 CPU with 32GB eMMC & 2GB RAM on board.

Box contents:
- UP board
- Heatsink
- RTC battery

Note: This product comes without operating system


UP board version UP
SoC Intel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz
Graphics Intel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8
System memory 2GB DDR3L
Storage capacity 32GB eMMC
USB2.0 external connector x4
USB2.0 port (pin header) x2
USB 3.0 port x1 ( OTG)
Ethernet 1x Gb Ethernet (full speed) RJ-45
Video output HDMI
Display interface DSI / eDP
Camera Interface MIPI-CSI
Power input 5V DC-in @ 3A 5.5/2.1mm jack
RTC YES
PXE YES
WOL YES
Operating humidity 10%～80%RH non-condensing
Operating tempature 32-140°F / 0~60°C
Expansion 40 pin General Purpose bus, supported by Altera Max V. ADC 8-bit@188ksos
Compatible operating system Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
Certificate CE/FCC Class A, RoHS complaint Microsoft Azure certified
Dimension 3.37" x 2.22" / 85.60 mm × 56.5 mm
Net Weight (without package) 80 gram (w/ passive heatsink)
CEC No
HS code 8473300000
package dimension 15*9*5 cm
Gross weight 140 gram
Country of Origin Taiwan
TT-UP-RE-UP-CHT01-A10-0232
out of stock INR 15845.984
UP.ORG
1 1
UP board 2GB + 32 GB eMMC memory

UP board 2GB + 32 GB eMMC memory

Sku: TT-UP-RE-UP-CHT01-A10-0232
Be the first to review this product
₹15,845.98
Sold Out
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a9e32ec474407674a0832cf/images/5a9e32ec474407674a0832d0/5a9e328c4484e129e347be51/5a9e328c4484e129e347be51.jpg

Description of product

UP unleashes the power of the Intel x5-Z8350 QuadCore 1.44Ghz (1.92GHz) 64 bit 2W SDP CPU.

The 40 Pin I/O connector, the USB 3.0 OTG, the Gigabit Ethernet, the HDMI and more other features make it a perfect solution for different domains and products like Robotics, Drone, Machine Vision, Smart Home, Education, Digital Signage, Intelligent Cars, Internet Of Things. The compatibility with Linux, Android, and all the Windows 10 distributions give you great flexibility, scalability and quick time to market.

Offered is one UP board,featuring with X5-Z8350 CPU with 32GB eMMC & 2GB RAM on board.

Box contents:
- UP board
- Heatsink
- RTC battery

Note: This product comes without operating system


UP board version UP
SoC Intel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz
Graphics Intel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8
System memory 2GB DDR3L
Storage capacity 32GB eMMC
USB2.0 external connector x4
USB2.0 port (pin header) x2
USB 3.0 port x1 ( OTG)
Ethernet 1x Gb Ethernet (full speed) RJ-45
Video output HDMI
Display interface DSI / eDP
Camera Interface MIPI-CSI
Power input 5V DC-in @ 3A 5.5/2.1mm jack
RTC YES
PXE YES
WOL YES
Operating humidity 10%～80%RH non-condensing
Operating tempature 32-140°F / 0~60°C
Expansion 40 pin General Purpose bus, supported by Altera Max V. ADC 8-bit@188ksos
Compatible operating system Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
Certificate CE/FCC Class A, RoHS complaint Microsoft Azure certified
Dimension 3.37" x 2.22" / 85.60 mm × 56.5 mm
Net Weight (without package) 80 gram (w/ passive heatsink)
CEC No
HS code 8473300000
package dimension 15*9*5 cm
Gross weight 140 gram
Country of Origin Taiwan
