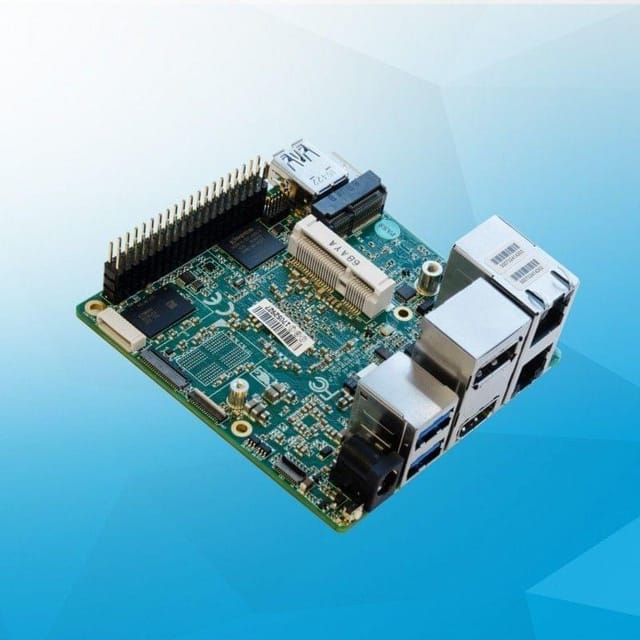

601e70bc795c811ee68f572a UP Squared Celeron Duo Core 4GB memory/32GB eMMC https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/601e70bd795c811ee68f5758/5a16964e011084ba595da03a.jpg
UP board version UP2 Squared
SoC Intel Celeron Dual Core up to 2.4 GHz N3350
Graphics Intel HD Graphic 500
System memory 4GB LPDDR4
Storage capacity 32GB eMMC
USB2.0 port (pin header) x2
USB 3.0 port x4 ( one OTG)
Ethernet 2x Gb Ethernet (full speed) RJ-45
Video output HDMI+DP
Display interface 1x eDP
Camera Interface 1xMIPI-CSI (2 lane) + 1xMIPI-CSI (4 lane)
Power input 5V DC-in @ 3A 5.5/2.1mm jack
RTC YES
PXE YES
WOL YES
Operating humidity 10%～80%RH non-condensing
Operating tempature 32-140°F / 0~60°C
Expansion 40 pin GP-bus enabled by Altera MAX 10 FPGA + 60 pin EXHAT
Compatible operating system Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
Certificate CE/FCC Class A, RoHS complaint Microsoft Azure certified
Dimension 85.6x 90mm
CEC optional
SATA x1
mPCI-e x1
M.2 2230 E-key x1
TT-UPS-APLC2-A10-0432
out of stock INR 22336.22
UP.ORG
1 1
UP Squared Celeron Duo Core 4GB memory/32GB eMMC

UP Squared Celeron Duo Core 4GB memory/32GB eMMC

Sku: TT-UPS-APLC2-A10-0432
Be the first to review this product
₹22,336.22
Sold Out
Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

UP board version UP2 Squared
SoC Intel Celeron Dual Core up to 2.4 GHz N3350
Graphics Intel HD Graphic 500
System memory 4GB LPDDR4
Storage capacity 32GB eMMC
USB2.0 port (pin header) x2
USB 3.0 port x4 ( one OTG)
Ethernet 2x Gb Ethernet (full speed) RJ-45
Video output HDMI+DP
Display interface 1x eDP
Camera Interface 1xMIPI-CSI (2 lane) + 1xMIPI-CSI (4 lane)
Power input 5V DC-in @ 3A 5.5/2.1mm jack
RTC YES
PXE YES
WOL YES
Operating humidity 10%～80%RH non-condensing
Operating tempature 32-140°F / 0~60°C
Expansion 40 pin GP-bus enabled by Altera MAX 10 FPGA + 60 pin EXHAT
Compatible operating system Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
Certificate CE/FCC Class A, RoHS complaint Microsoft Azure certified
Dimension 85.6x 90mm
CEC optional
SATA x1
mPCI-e x1
M.2 2230 E-key x1
