The 1 GSa/s 14 bit quad differential channel High Resolution WiFi Oscilloscope.

Key specifications

  • Differential inputs
  • 8, 12, 14, 16 bit resolution, 0.25 % DC vertical accuracy, 0.1 % typical
  • Up to 1 GSa/s sampling, up to 250 MHz bandwidth
  • Up to 256 MSamples memory per channel
  • Up to 200 MSs/s continuous streaming
  • 1 ppm time base accuracy

Documentation:

Datasheet

Manual

Specification :

Acquisition system
Number of input channels 4 analog
CH1, CH2, CH3, CH4 Isolated female BNC
Type Differential input
Resolution User selectable in software
Native 8, 12, 14 bit
Enhanced 16 bit
DC Accuracy 0.25 % (0.1 % typical) of full scale ± 1 LSB at 20 °C to 25 °C
To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow additional time for internal temperatures to stabilize.
Ranges (full scale) ± 200 mV
± 400 mV
± 800 mV
Coupling AC/DC
Impedance 2 MOhm / 12 pF ± 1 %
1 MOhm / 20 pF ± 1 % when SafeGround enabled
Noise 305 µVrms (200 mV range, 12 bit, 50 MSa/s)
90 µVrms (200 mV range, 16 bit, 6.25 MSa/s)
Maximum voltage 200 V (DC + AC peak < 10 kHz)
Maximum Common Mode voltage 200 mV to 800 mV ranges : 2 V
2 V to 8 V ranges : 20 V
20 V to 80 V ranges : 200 V
Common Mode Rejection Ratio -47 dB
Bandwidth WS6 DIFF-1000
-3 dB at 75 % of full scale input 250 MHz
Limit, selectable per channel Off (250 MHz)
150 MHz
100 MHz
50 MHz
AC coupling cut off frequency (-3 dB) ± 1.5 Hz
Channel Isolation 500 V
Channel Separation -80 dB
SureConnect Optionally available (option S)
Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
Resistance measurement Optionally available (option S)
Ranges (Full scale) 1 kΩ
2 kΩ
5 kΩ
Accuracy 1 % of full scale
Response time (to 95 %) < 10 µs
SafeGround Optionally available (option G)
Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
Maximum switch off current 500 mA
Response time < 100 ns

Maximum sampling rate WS6 DIFF-1000
8 bit
measuring one channel 1 GSa/s
measuring two channels 500 MSa/s
measuring three or four channels 200 MSa/s
12 bit
measuring one channel 500 MSa/s
measuring two channels 200 MSa/s
measuring three or four channels 100 MSa/s
14 bit 100 MSa/s
16 bit 6.25 MSa/s

Maximum streaming rate 1 WS6 DIFF-1000
8 bit
measuring one channel 200 MSa/s 2
measuring two channels 100 MSa/s 3
measuring three or four channels 50 MSa/s 4
12 bit
measuring one channel 100 MSa/s 3
measuring two channels 50 MSa/s 4
measuring three or four channels 25 MSa/s 5
14 bit
measuring one channel 100 MSa/s 3
measuring two channels 50 MSa/s 4
measuring three or four channels 25 MSa/s 5
16 bit 6.25 MSa/s 6
  1. Due to computer restrictions, on some computers the highest streaming rates may not be available.
    When LAN/WiFi connected, the maximum streaming rate is limited, and depends on the quality of the network.
  2. ≤ 40 MSs/s when connected to USB 2.0 or via LAN/WiFi
  3. ≤ 20 MSs/s when connected to USB 2.0 or via LAN/WiFi
  4. ≤ 10 MSs/s when connected to USB 2.0 or via LAN/WiFi
  5. ≤ 5 MSs/s when connected to USB 2.0 or via LAN/WiFi
  6. ≤ 3.125 MSs/s when connected to USB 2.0 or via LAN/WiFi
Sampling clock source
Internal TCXO
Accuracy ± 0.0001 %
Stability ± 1 ppm over 0 °C to 55 °C
Time base aging ± 1 ppm/year
External LVDS, on CMI connectors
Input frequency 10 MHz ± 1 %
16.369 MHz ± 1 %

Memory Standard model
8 bit resolution
Measuring one channel 1 MSa per channel
Measuring two channels 512 KSa per channel
Measuring three channels 256 KSa per channel
Measuring four channels 256 KSa per channel
12, 14, 16 bit resolution
Measuring one channel 512 KSa per channel
Measuring two channels 256 KSa per channel
Measuring three channels 128 KSa per channel
Measuring four channels 128 KSa per channel

Trigger Only available in scope/block mode, not in streaming mode
System Digital, 2 levels
Source CH1, CH2, CH3, CH4, OR, digital external
Trigger modes Rising edge, Falling edge, Any edge
Inside window, Outside window, Enter window, Exit window (time conditions only on Ch1)
Pulse width (only on Ch1)
Interval (only on Ch1)
Level adjustment 0 to 100 % of full scale
Hysteresis adjustment 0 to 100 % of full scale
Resolution 0.006 % (14, 16 bits) / 0.025 % (12 bits)
Pre trigger 0 to selected record length, 1 sample resolution
Post trigger 0 to selected record length, 1 sample resolution
Trigger hold-off 0 to 63 MSamples, 1 sample resolution
Trigger delay 0 to 8 GSamples, 1 sample resolution
Digital external trigger
Input Extension connector pins 1 and 2
Range 0 to 2.5 V (TTL)
Coupling DC
Jitter ≤ 1 sample

Multi-instrument synchronization
Using CMI Synchronizing instruments via CMI is available when all instruments are connected via USB.
Maximum number of instruments Limited by number of available USB ports
Synchronization accuracy 0 ppm
CMI interface 2x, CMI 1, CMI 2
Required coupling cable TP-C50H CMI Coupling cable
Maximum coupling cable length 50 cm
Using WCMI Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi.
Maximum number of instruments No limitation
Required coupling module WCMI - 8, WCMI - 9
Clock synchronization accuracy ≤ 1 ppm, typical ≤ 0.2 ppm
Trigger jitter at sample rate 1 ≤ 1 MSa/s > 1 MSa/s
2 x "5" ≤ ± 2 samples ≤ ± 2 µs
"5" and "6"
Trigger source "5" ≤ ± 2 samples ≤ ± 2 µs
Trigger source "6" ≤ ± 8 samples ≤ ± 8 µs
2 x "6" ≤ ± 8 samples ≤ ± 8 µs
  1. "5" = WiFiScope WS5 or Handyscope HS5.
    "6" = WiFiScope WS6 DIFF, WiFiScope WS6, Handyscope HS6 DIFF, Handyscope HS6, ATS610004DW-XMSG, ATS610004D-XMSG, ATS605004DW-XMS or ATS605004D-XMS

Probe calibration
Output Extension connector pins 3 (signal) and 6 (ground)
Signal Square wave
Level -1 V to 1 V
Frequency 1 kHz

Interface
Interface
USB USB 3.0 SuperSpeed (5 Gbit/s);
(USB 2.0 HighSpeed compatible)
Network
LAN 1 Gbps
WiFi 802.11
Network port (TCPIP and UDP) 5450 (IANA assigned)

Power Requirements
Power From USB, external input or built-in battery
Consumption 12 VDC 2 A max
External power From power adapter
Internal battery Li-ion
Capacity 7000 mAh, 3.7 V
Weight 160 g

Physical
Instrument
Height 44 mm (1.7 inch)
Length 187 mm (6.7 inch)
Width 215 mm (5.2 inch)
Weight 791 g (27.9 ounce)
USB cord length 1.5 m (59 inch)

I/O connectors
Channel 1, 2, 3, 4 Isolated BNC, female
LAN RJ45 socket
USB USB 3.0 type B Super Speed socket
Extension connector D-sub 9 pins female
Power 3.5 mm power socket
CMI connectors 2 x HDMI type C socket

System requirements
PC I/O connection USB 2.0, USB 3.0 or USB 3.1
RJ45
WiFi
Operating system Windows 10 / 11, 64 bits
Linux (via own software using the libtiepie-hw SDK)

Environmental conditions
  Ambient temperature Relative humidity
Operating (with charging) 20 °C to 25 °C for rated accuracy
(10 °C to 30 °C without specifications)		 10 % to 90 %, non condensing
Operating (without charging) 20 °C to 30 °C for rated accuracy
(10 °C to 35 °C without specifications)		 10 % to 90 %, non condensing
Only charging 0 °C to 35 °C 10 % to 90 %, non condensing
Storage 0 °C to 35 °C 5 % to 95 %, non condensing

Certifications and Compliances
CE mark compliance Yes
RoHS Yes
EN 55011:2009/A1:2010 Yes
EN 55022:2006/A1:2007 Yes
EN 61000-6-1:2007 Yes
EN 61000-6-3:2007 Yes

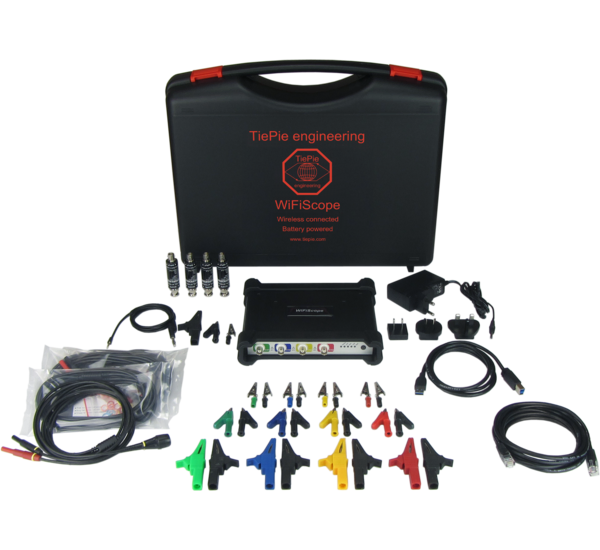

Package contents
Carry case Carry case BB453
Instrument WiFiScope WS6 DIFF
Measure leads 4 x Measure lead TP-C812B, Differential BNC -> 4 mm banana plug
Differential attenuator 4 x Differential attenuator TP-DA10
Alligator clips, large Alligator Clip TP-AC80I - Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 large alligator clips
Alligator clips, medium Alligator Clip TP-AC10I - Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 medium alligator clips
Alligator clips, small Alligator Clip TP-AC5 - Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 small alligator clips
Accessories Ground compensation Cable TP-GCC150
Handyscope / WiFiScope power supply
USB3 cable, 1.5 m long
network cable, 3 m long
Probe compensation cable TP-DB9-BNC-30 (only with option SafeGround)
Software for Windows 10 / 11, 64 bits, via website
Drivers for Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user's manuals
color printed and digital, via website

Optional Accessories
Optional accessories for the WiFiScope WS6 DIFF need to be ordered separately
Oscilloscope probe Oscilloscope Probe 1:1-1:10 - HP-3250I, only with SafeGround option G
Measure lead single-ended Measure lead TP-BNCI-100, only with SafeGround option G
