5b98cfb134fc9b1269e0a349 Z-turn Lite IO Cape https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98cfb134fc9b1269e0a349/images/5b98cfb134fc9b1269e0a34a/5b98cf6f8e262e11ddaa542c/5b98cf6f8e262e11ddaa542c.jpg

Description

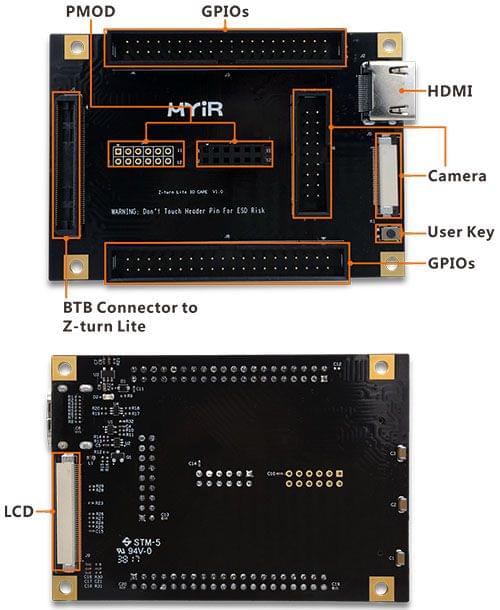

The Z-turn Lite IO Cape is an IO extension board designed specially for Xilinx Zynq-7007S or Zynq-7010 SoC based Single Board Computer Z-turn Lite which is an ultra-cost-effective lite version of MYIR’s Z-turn board. User can bring out many peripherals and signals like HDMI, Camera, LCD and GPIOs to help you explore more functions from the Z-turn Lite.

Specification:

ItemDescription
I/O

Two 2.54mm pitch 2 x 20-pin Expansion connectors for I/O Function (J3 & J8)
J3 is reused with CAMERA (J5&J6) / PMOD (J4&J7).

J8 is reused with LCD (J9)

LCD / Touch screenOne 0.5mm pitch 50-pin LCD connector (on the rear of the board)
Can connect with MYIR's 7-inch capacitive LCD Module
CameraOne Camera interface through 30-pin FPC connector (J3) or 2.54mm pitch 2 x 9-pin connector (J6)
PmodTwo Pmod interfaces, can be used for connecting with some common Pmod modules
(J7 is soldered with 2.54mm pitch 2 x 6-pin female connector and J4 is not soldered with connector)
HDMIOne HDMI interface (supports 720p resolution currently, 1080p later)
We offer reference design for HDMI and LCD display functions without limitation for its. The IP cores in the design are provided by Xilinx. MYIR will provide Vivado project and SDK testing programs.
Dimensions91mm x 63mm
Power input5V, 3.3V



Z-turn Lite connected with Z-turn Lite IO Cape

Z-turn Lite connected with Z-turn Lite IO Cape

Dimensions of Z-turn Lite IO Cape

Dimensions of Z-turn Lite IO Cape

Products Supporting List

NO

Item

Part NO

Remark

1

Z-turn Lite

MYS-7Z007S-C-S

MYS-7Z010-L-C-S



2

Z-turn Lite Kit

MYS-7Z007S-C

MYS-7Z010-L-C



3

MY-LCD70TP-C 7-inch LCD Module

MY-TFT070CV2

Supports through Z-turn Lite IO Cape

TT-MY-CAPE002
in stockINR 4751.86
