The 24LC512-I/P is a 512kb (64k x 8) I²C™ Serial Electrically Erasable PROM (EEPROM) capable of operation across a broad voltage range (2.5 to 5.5V). It has been developed for advanced, low-power applications such as personal communications and data acquisition. This device also has a page write capability of up to 128-byte of data. This device is capable of both random and sequential reads up to the 512k boundary. Functional address lines allow up to eight devices on the same bus, for up to 4Mb address space.

Applications:

1. Industrial
2. Power Management
3. Communications & Networking
4. Automotive

Features:

1. Single Supply with Operation down to 1.7V for 24AA512 and 24FC512 Devices, 2.5V for 24LC512 Devices
2. Low-Power CMOS Technology:
   – Active current 400 uA, typical
   – Standby current 100 nA, typical


3. Wire Serial Interface, I2C™ Compatible
4. Cascadable for up to Eight Devices
5. Schmitt Trigger Inputs for Noise Suppression
6. Output Slope Control to Eliminate Ground Bounce
7. 100 kHz and 400 kHz Clock Compatibility
8. Page Write Time 5 ms max.
9. Self-Timed Erase/Write Cycle
10. 128-byte Page Write Buffer
11. Hardware Write-Protect
12. ESD Protection >4000V
13. More than 1 Million Erase/Write Cycles
14. Data Retention > 200 years
15. Packages Include 8-lead PDIP, SOIJ, SOIC,
16. TSSOP, DFN, Chip Scale and 14-lead TSSOP
17. Pb-Free and RoHS Compliant

Package Includes:

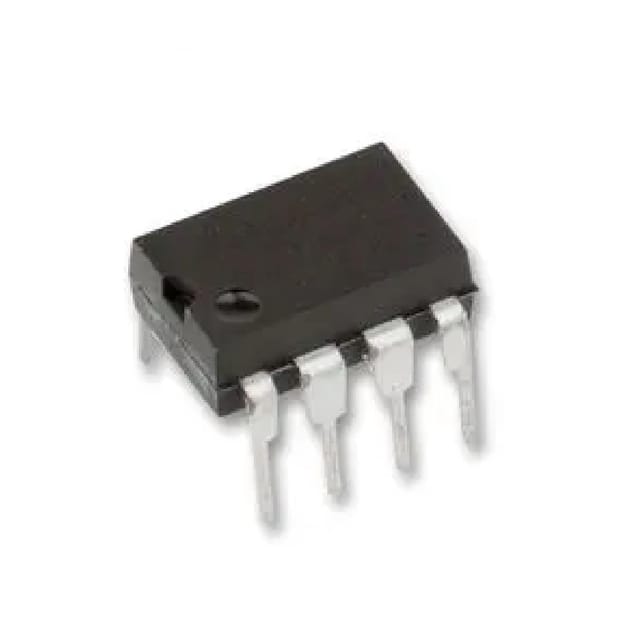

1 x 24LC512-I/P-MICROCHIP-EEPROM, 512 Kbit, 64K x 8bit, Serial I2C (2-Wire), 400 kHz, DIP, 8 Pins
