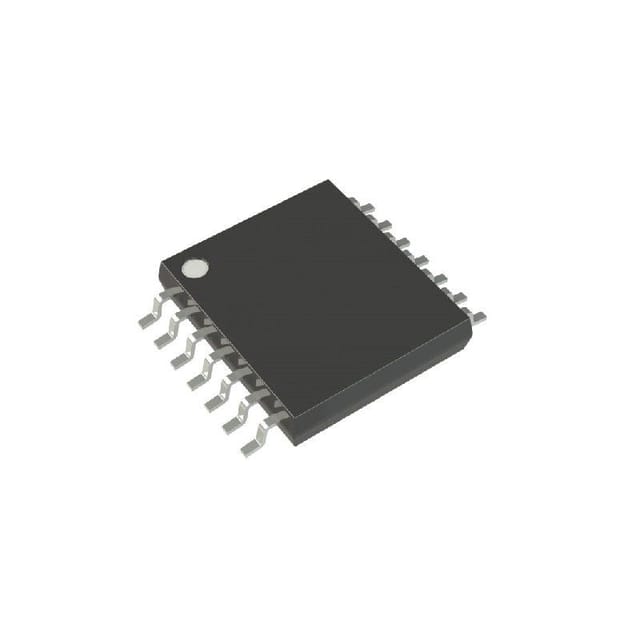

MCP3004-I/ST-MICROCHIP-Analogue to Digital Converter, 10 bit, 200 kSPS, Pseudo Differential, Single Ended, Serial, SPI. The MCP3004-I/ST is a 4-channel 10-bit Analog-to-Digital Converter (ADC) from Microchip Technology. It is part of the MCP3000 series, which provides a way to convert analog signals into digital signals for use in microcontroller or other digital systems.

Note: Images for reference only.

Features:

• 4-Channel Analog Input
• SPI Communication
• Low Power Consumption
• Single Supply Voltage
• 10-Bit Resolution

Specifications:

1. Number of Bits: 10
2. Sampling Rate (Per Second): 200k
3. Number of Inputs: 2, 4
4. Input Type: Pseudo-Differential, Single Ended
5. Data Interface: SPI
6. Configuration: MUX-S/H-ADC
7. Ratio – S/H:ADC: 1:1
8. Number of A/D Converters: 1
9. Architecture: SAR
10. Reference Type: External
11. Voltage – Supply, Analog: 2.7V ~ 5.5V
12. Voltage – Supply, Digital: 2.7V ~ 5.5V

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MCP3004-I/ST-MICROCHIP-Analogue to Digital Converter, 10 bit, 200 kSPS, Pseudo Differential, Single Ended, Serial, SPI
