5fa11ed883d1e5268a744042 LAUNCHXL-F28027F https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/5fa11e2c1bbfe96494dfbd34/launchxl-f28027f_launchxl-f28027f-bottom.jpg

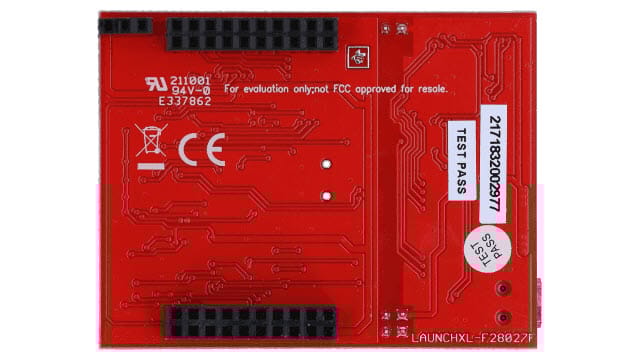

LAUNCHXL-F28027F is a low cost evaluation and development tool for the InstaSPIN-FOC enabled F2802x series in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.

Hardware features

  • USB connected isolated XDS100 JTAG debug probe for real-time debug and flash programming
  • 2x 20-pin headers/connectors with access to all device pins
  • Programmable buttons and LEDs
  • TMS320F28027F: 60 MHz C28x CPU, 64 KB Flash, InstaSPIN-FOC enabled, 8 PWM Channels, 12-bit ADC, capture interface, UART, SPI and more
  • Hardware Files are in C2000Ware at boards\LaunchPads\LAUNCHXL_F28027

Software features

  • Free download of Code Composer Studio IDE
  • Free download of MotorWare for InstaSPIN-FOC example projects
  • Free download of controlSUITE for device drivers and example projects
  • MathWorks Embedded Target Support

Recommended BoosterPacks

  • BOOSTXL-DRV8301
  • BOOSTXL-DRV8305EVM
  • TI BoosterPack Checker for an interactive list of compatible BoosterPacks

 TT-TIS-06
out of stock INR
Digi
1 1
LAUNCHXL-F28027F

LAUNCHXL-F28027F

Sku: TT-TIS-06
Be the first to review this product
Sold Out
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

LAUNCHXL-F28027F is a low cost evaluation and development tool for the InstaSPIN-FOC enabled F2802x series in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.

Hardware features

  • USB connected isolated XDS100 JTAG debug probe for real-time debug and flash programming
  • 2x 20-pin headers/connectors with access to all device pins
  • Programmable buttons and LEDs
  • TMS320F28027F: 60 MHz C28x CPU, 64 KB Flash, InstaSPIN-FOC enabled, 8 PWM Channels, 12-bit ADC, capture interface, UART, SPI and more
  • Hardware Files are in C2000Ware at boards\LaunchPads\LAUNCHXL_F28027

Software features

  • Free download of Code Composer Studio IDE
  • Free download of MotorWare for InstaSPIN-FOC example projects
  • Free download of controlSUITE for device drivers and example projects
  • MathWorks Embedded Target Support

Recommended BoosterPacks

  • BOOSTXL-DRV8301
  • BOOSTXL-DRV8305EVM
  • TI BoosterPack Checker for an interactive list of compatible BoosterPacks
