Description

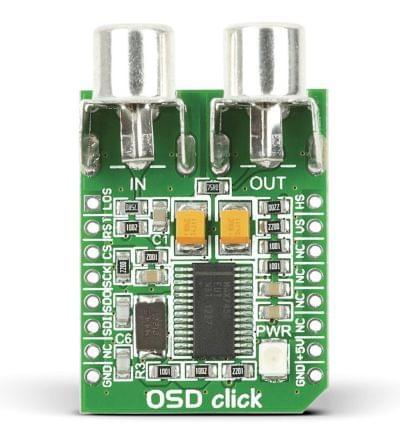

OSD Click features MAX7456 single-channel monochrome OSD module with integrated EEPROM memory as well as two RCA sockets. It is used to create on-screen menus and other video overlays, such as custom graphics, company logo, time and date using 256 user-programmable characters or pictographs. It is NTSC and PAL compatible and displays up to 16 rows x 30 characters. MAX7456 has internal sync generator. OSD Click™ communicates with target microcontroller via mikroBUS™ SPI (SDI, SDO, SCK, CS#), RST, LOS, HSYNC and VSYNC lines. The board is designed to use 5V power supply only. LED diode (Green) indicates the presence of power supply.
- Home
- DEVELOPMENT BOARDS AND IC's
- CLICK BOARDS
- OSD click
OSD click
SIZE GUIDE
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aa3b09d696d0cb57a5a4396/images/5aa3b09d696d0cb57a5a4397/5aa3b08ebd7e6785c6ebe859/5aa3b08ebd7e6785c6ebe859.jpg
Description of product
Description
OSD Click features MAX7456 single-channel monochrome OSD module with integrated EEPROM memory as well as two RCA sockets. It is used to create on-screen menus and other video overlays, such as custom graphics, company logo, time and date using 256 user-programmable characters or pictographs. It is NTSC and PAL compatible and displays up to 16 rows x 30 characters. MAX7456 has internal sync generator. OSD Click™ communicates with target microcontroller via mikroBUS™ SPI (SDI, SDO, SCK, CS#), RST, LOS, HSYNC and VSYNC lines. The board is designed to use 5V power supply only. LED diode (Green) indicates the presence of power supply.
