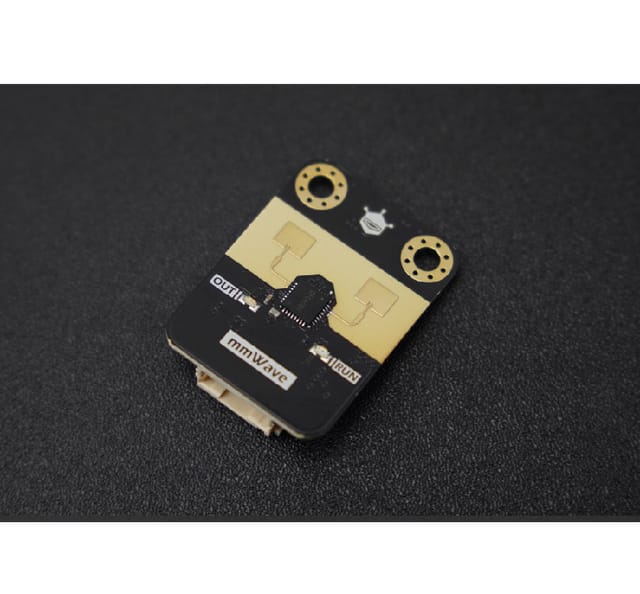

The Gravity: C4001 millimeter-wave presence sensor, operating at a wavelength signal of 24GHz, boasts a horizontal detection range of 100°, a presence detection range of 8 meters, and a motion detection and ranging range of 12 meters. It utilizes the Gravity interface (PH2.0) and supports I2C and UART communication methods, compatible with Arduino, Raspberry Pi, ESP32 / ESP8266 development boards. Perfect for human presence detection, environmental monitoring, and real-time monitoring projects

Applications:

1. Human Detection
2. Distance and Velocity Detection
3. Environmental Monitoring
4. Industrial Automation
5. Real-time Monitoring and Tracking

Features:

1. Communication Methods: It supports two communication methods, I2C and UART.
2. Interface: It uses the Gravity interface (PH2.0).
3. Human Detection: It can detect the presence of humans up to 8 meters and detect human motion up to 12 meters.
4. Distance Detection: It can measure distances from 1.2m to 12m.
5. Speed Detection: It can detect speeds from 0.1m/s to 10m/s.
6. Strong anti-interference capability: It is not affected by factors such as snow, haze, temperature, humidity, dust, light, and noise.
7. Compact size and easy integration.

Package Includes:

1 x Gravity: mmWave 24GHz Human Presence Detection Sensor (12 Meters, I2C & UART)

1 x Gravity-4P I2C/UART Sensor Connector
