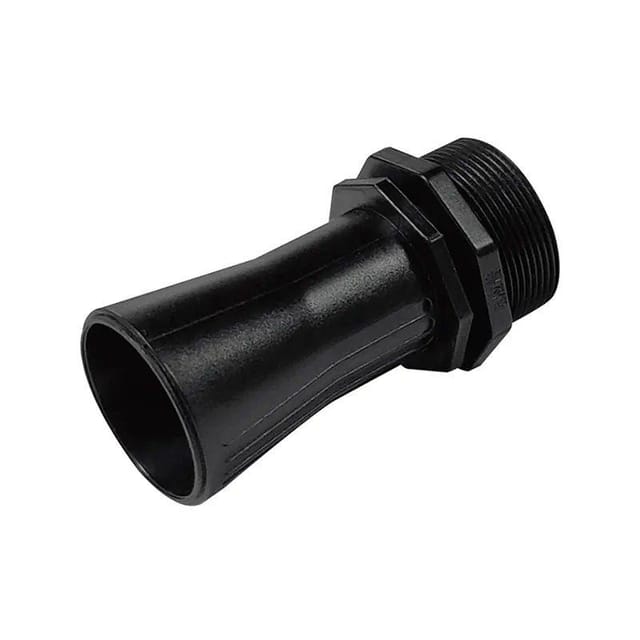

The DYP-A01ANY4B-V2.1 is a high-performance ultrasonic rangefinder designed for precise distance measurement from 28 cm to 750 cm with millimeter-level accuracy. Featuring multiple output interfaces (UART, PWM, Switch, RS485), it supports various applications including flat object detection, waste bin level monitoring, and human body detection. The sensor operates with low current consumption, offers internal temperature compensation, and is IP67 rated for durability in harsh environments. Its small, compact design makes integration easy for smart systems such as parking management and industrial automation. With a wide operational temperature range, it ensures stable performance in diverse conditions.

Features:

1. Measuring Range: 28 cm to 750 cm with millimeter-level precision.
2. Accuracy: ±(1 + S * 0.3%) based on the measuring range.
3. Multiple Output Interfaces: Supports UART auto, UART controlled, PWM, Switch, and RS485.
4. Internal Temperature Compensation: Ensures stable performance across temperature variations.
5. Low Power Consumption: 10 mA average current and standby current <10 µA.
6. IP67 Enclosure Rating: Dustproof and waterproof, ideal for harsh environments.
7. Small, Compact Design: Easy integration into various systems and products.
8. Operational Temperature: -15°C to +60°C, suitable for diverse environments.
9. Dead Zone: 28 cm minimum distance, suitable for long-range measurements.
10. Firmware Filtering: Advanced noise tolerance and clutter rejection for stable readings.

Package Includes:

1 x DYP-A01ANY4B-V2.1 |High Performance Ultrasonic Precision Rangefinder | 28-750cm | RS485
