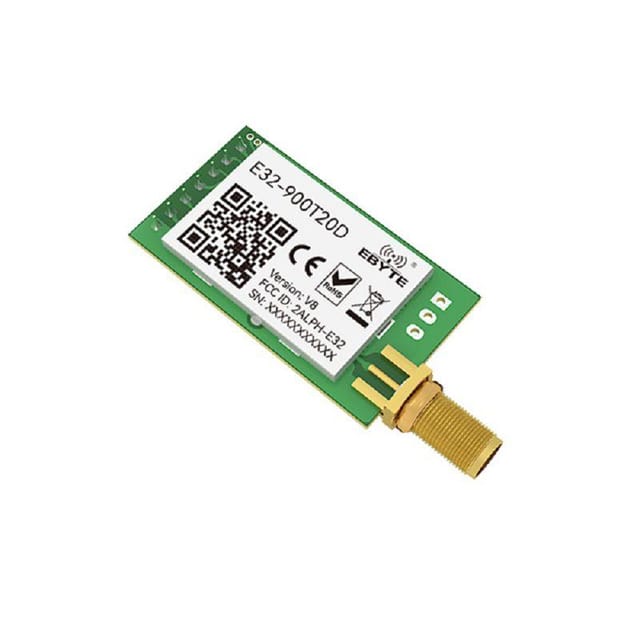

The EBYTE E32-900T20D is a long-range LoRa module operating in the 868MHz frequency band. Built with a Semtech IC, it leverages LoRa spread spectrum technology for Tenet Technetronicsst communication. This UART module offers a 20dBm transmit power, making it suitable for extended-range applications. It provides a reliable solution for various wireless communication needs.

Features:

1. Wireless serial port module based on Semtech imported upgraded version of RF chip, LoRa spread spectrum, 868/915MHz, power: 100mW, long distance, anti-interference.
2. Chip supports LoRa spread spectrum technology. LoRa Direct Sequence Spread Spectrum has longer communication distance, stronger anti-interference ability, and strong confidentiality.
3. 4mworing modes are there – Transmission mode : Transparent transmission mode, the most commonly used working mode
4. Wake-up mode Low power consumption (wake on air)mf transmitter mode, automatically add wake-up code
5. Power saving mode : Low power consumption (wake on air) Receiver mode, this mode cannot transmit data
6. Deep sleep mode : In deep sleep mode, the overall power consumption is only 2uA
7. Multiple transmission methods are available
8. Multiple transmission methods can be realized through software

Package Includes:

1 x EBYTE E32-900T20D Ebyte 868MHz LoRa Solution Semtech IC Long Distance UART 20dBm Lora Module
