The EPTTECH TLC2103-WL Smart Ultrasonic Water Tank Level Controller and digital indicator communicate via RF433MHz, the communication distance can reach 100 meters in open space, and the signal coverage is wide. LCD display is connected to the smart socket, it’s black line is connected to the power adapter after power is turned on, and the white line is connected to the smart socket.

When the water level reaches the minimum level or the maximum level, it is used to control the automatic switch of the water pump. This allows TLC2103-WL water tank level indicator to achieve integrated integration of water tank level montoring, early warning, and control functions.

Features:

1. Measuring distance of sensor is 10cm to 2.5m(3.937-98.425 inches) from the sensor,suitable for different tanks
2. Input Power by Adapter which support 100-240V AC
3. Auto Control the Water Pump and the Max AC Pump can be 16A/2.5KW
4. There is no wire between the sensor and the display. Communication is done via RF433MHz, and the distance can reach 100m in open space.
5. Real-time display room and water tank temperature and Temperature detect range is -10℃-70℃
6. The sensor has been upgraded and waterproofed, so you are not afraid to use it outdoors in rainy days
7. Low level: turn on the smart plug to turn on the water pump
8. High level: turn off the smart plug to turn off the water pump

Useful Link : https://www.eptsensor.com/level-controller/aquarium-level-controller/smart-home-tlc-2103wl-ultrasonic-level.html

Package Includes:

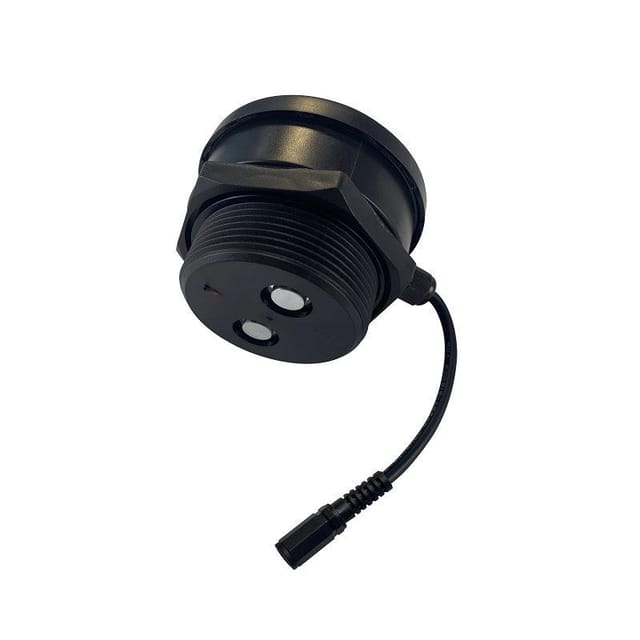

1 x EPTTECH TLC2103-WL Smart Ultrasonic Water Tank Level Controller Sensor, (10cm~2.5m)

2 x Power Adapter

1 x  Display

1 x User Manual
