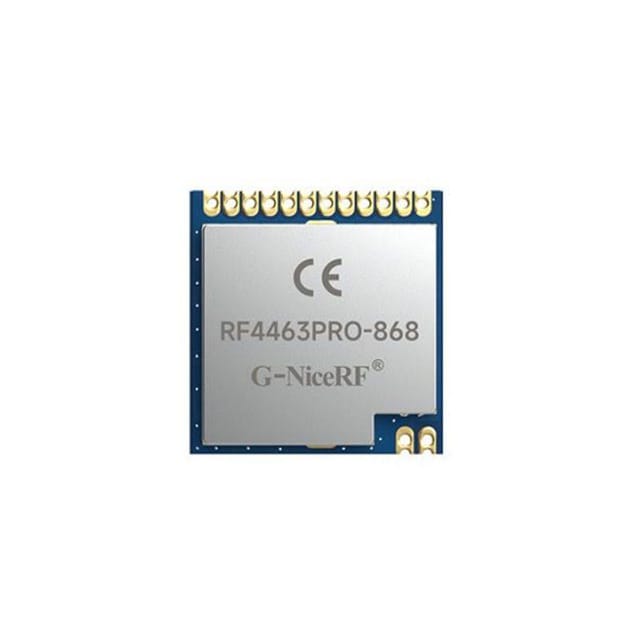

68ac19349ff24246948021c0 G-NiceRF RF4463PRO-868 : Si4463 CE-RED Certified 100mW 868MHz RF Module With 10PPM Crystal https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/68ac19359ff24246948021c2/001.jpg

The G-NiceRF RF4463PRO-868 is a high-performance, CE-RED certified RF module designed for wireless communication in the 868 MHz ISM band. Featuring the Silicon Labs Si4463 C2 chip, it offers a receiving sensitivity of -126 dBm and a maximum output power of 20 dBm for extended range and reliable performance. With low power consumption (13.5 mA in high-performance mode) and versatile modulation options, it supports data rates from 0.1 to 1000 Kbps. The module is ideal for applications like remote control, sensor networks, and industrial control, and is compliant with RoHS and REACH standards. G-NiceRF RF4463PRO-868 operates across a wide temperature range (-40°C to +85°C) and simplifies certification with CE-RED approval, making it a cost-effective solution for various wireless systems.

Features:

  1. Frequency Range: 868 MHz (customizable 433 MHz, 470 MHz, 915 MHz, and 142–1050 MHz)
  2. High Sensitivity: Receives signals as low as -126 dBm
  3. Output Power: Adjustable up to 20 dBm
  4. Low Power Consumption: 13.5 mA in high-performance mode, 10.7 mA in low-power mode, and < 0.1 µA in sleep mode
  5. Data Rate: Supports 0.1 to 1000 Kbps
  6. Modulation Types: (G)FSK, 4(G)FSK, (G)MSK, ASK
  7. Operating Voltage: 1.8V to 3.6V
  8. Temperature Range: -40°C to +85°C

Package Includes:

1 x G-NiceRF RF4463PRO-868 : Si4463 CE-RED Certified 100mW 868MHz RF Module With 10PPM Crystal

 TT-RB-R200244
in stock INR 727
1 1

G-NiceRF RF4463PRO-868 : Si4463 CE-RED Certified 100mW 868MHz RF Module With 10PPM Crystal

Sku: TT-RB-R200244
Be the first to review this product
₹727
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The G-NiceRF RF4463PRO-868 is a high-performance, CE-RED certified RF module designed for wireless communication in the 868 MHz ISM band. Featuring the Silicon Labs Si4463 C2 chip, it offers a receiving sensitivity of -126 dBm and a maximum output power of 20 dBm for extended range and reliable performance. With low power consumption (13.5 mA in high-performance mode) and versatile modulation options, it supports data rates from 0.1 to 1000 Kbps. The module is ideal for applications like remote control, sensor networks, and industrial control, and is compliant with RoHS and REACH standards. G-NiceRF RF4463PRO-868 operates across a wide temperature range (-40°C to +85°C) and simplifies certification with CE-RED approval, making it a cost-effective solution for various wireless systems.

Features:

  1. Frequency Range: 868 MHz (customizable 433 MHz, 470 MHz, 915 MHz, and 142–1050 MHz)
  2. High Sensitivity: Receives signals as low as -126 dBm
  3. Output Power: Adjustable up to 20 dBm
  4. Low Power Consumption: 13.5 mA in high-performance mode, 10.7 mA in low-power mode, and < 0.1 µA in sleep mode
  5. Data Rate: Supports 0.1 to 1000 Kbps
  6. Modulation Types: (G)FSK, 4(G)FSK, (G)MSK, ASK
  7. Operating Voltage: 1.8V to 3.6V
  8. Temperature Range: -40°C to +85°C

Package Includes:

1 x G-NiceRF RF4463PRO-868 : Si4463 CE-RED Certified 100mW 868MHz RF Module With 10PPM Crystal
