5b1b986ec370e38b4328b234 Gamepad module for micro:bit, Joystick and Buttons https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1b986ec370e38b4328b234/images/5e2c0cdfdf4c1351485c9089/5e2c0cdb1f93095ae6f3e96b/5e2c0cdb1f93095ae6f3e96b.jpg

Overview

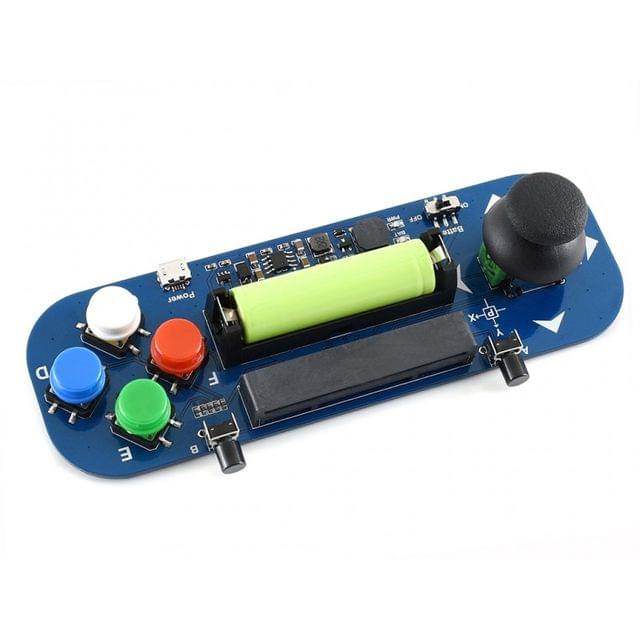

This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.

Features

  • micro:bit edge connector, directly pluggable
  • High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
  • Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
  • Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
  • 4x colorful buttons
  • 2x side buttons, related to the A/B buttons of micro:bit, easy to use
  • Buzzer for playing music and game background effect
  • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

Specifications

  • Operating voltage: 5V
  • Battery type: 14500 Li-ion
  • Dimension: 150mm x 50mm
 TT-WS-14593
in stock INR
WAVESHARE
1 1
Gamepad module for micro:bit, Joystick and Buttons

Gamepad module for micro:bit, Joystick and Buttons

Sku: TT-WS-14593
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • PRE ORDER
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1b986ec370e38b4328b234/images/5e2c0cdfdf4c1351485c9086/5e2c0cca5a6a1a51914115f1/5e2c0cca5a6a1a51914115f1.jpg

Description of product

Overview

This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.

Features

  • micro:bit edge connector, directly pluggable
  • High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
  • Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
  • Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
  • 4x colorful buttons
  • 2x side buttons, related to the A/B buttons of micro:bit, easy to use
  • Buzzer for playing music and game background effect
  • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

Specifications

  • Operating voltage: 5V
  • Battery type: 14500 Li-ion
  • Dimension: 150mm x 50mm
