20MHz Bandwidth; 48MSa/s Sample Rate; 16 Channels Logic Analyzer; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

Features:

1. Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
2. Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.USB2.0 interface, no external power source required, easy to use.
3. Be suitable for notebook computer, product line maintenance, be used easily on business.Dimensions (mm):205(L) x120(W) x35(H), be carried easily.High performance, 48MS/s real-time sampling, 20MHz bandwidth.
4. 16Channels Logic Analyzer, 10MHz Bandwidth.
5. Operating System: Windows 7, Windows 8, Windows 10.20 measurement functions.intensity, invert, addition, subtraction, multiplication, division, X-Y plot.

Specifications:

1. Bandwidth: 20MHz
2. Channels: 2 Digital Channels + 16 Logic Channels
3. Sample Rate: 48MSa/s
4. Memory Depth: 1M
5. Rise Time: 17.5ns
6. Time Base Precision: ±50ppm
7. Time Base Range: 4ns/div – 1h/div (Step by 1-2-4)
8. Input Impedance: 1MΩ 25pF
9. Input Sensitivity: 10mV/div to 5V/div
10. Vertical Resolution: 8 Bit
11. Vertical Position Range: 10mV to 5V/div @ x1 probe; 100mV to 50V/div @ x10 probe; 1V to 500V/div @ x100 probe; 10V to 5KV/div @ x1000 probe
12. DC Accuracy: ±3%
13. Bandwidth Limited: 20MHz
14. Trigger Type: Edge, Alternative
15. Trigger Source: CH1, CH2, EXT, EXT/10
16. Math Operations: +,-,x,÷,FFT, Invert
17. Cursor Measurement: Cross, Trace, Horizontal, Vertical
18. Auto Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
19. Logic Analyzer Features: 16 Channels, Max. Impedance 1MΩ(C=7.5pF), Max. Voltage 0V~5.5V, Max. Sample 48M, Bandwidth 10MHz, Compatible Input TTL, LVTTL, CMOS, Memory Depth 1M/CH
20. General Features: Powered via USB Port,
21. Dimensions 200mm x 100mm x 35mm, Weight 0.3KG
22. Standard Probe: 2 x PP80

Package Includes:

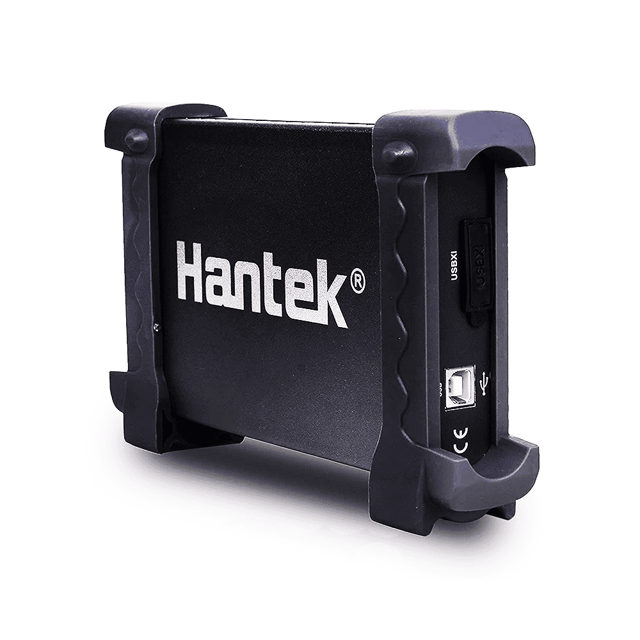

1 xHantek 6022BL PC-Based Oscilloscope; 20MHz Bandwidth; 48MS/s Sample Rate; 16 Channels Logic Analyzer
