Hi-Link HLK-LD2420 is a high-performance 24 GHz radar module with one transmitter and one receiver antenna. Its human sensing algorithm uses millimeter-wave radar distance measurement technology and the advanced proprietary signal processing technology of S3 series chips to achieve accurate sensing of moving, micro-movement, and standing human bodies. HLK-LD2420 is mainly used in indoor scenes to sense whether there is a moving or slightly moving human body in the area and refresh the detection results in real-time. It has a maximum

sensing distance of 8 m and can be easily configured to sense the distance range, sensitivity, and refresh time in different zones. It supports GPIO and UART interface, which is plug-and-play and can

be flexibly applied to different smart scenarios and end products.

Features:

1. Ultra-small module size: 20 mm × 20 mm
2. Load default body sensor configuration, plug and play
3. 24 GHz ISM band with FCC, CE, and Commission-free spectrum regulatory approvals
4. 3.3 V power supply, supports 3.0 V ~ 3.6 Wide voltage range
5. Average operating current 50 mA
6. Detection target for motion, micro-motion human body

Specifications:

1. Power supply: 3.3 V (3.0 V ~ 3.6)
2. Operating Current: 50 mA
3. Band: 24 GHz
4. Size: 20 mm × 20 mm

Package Includes:

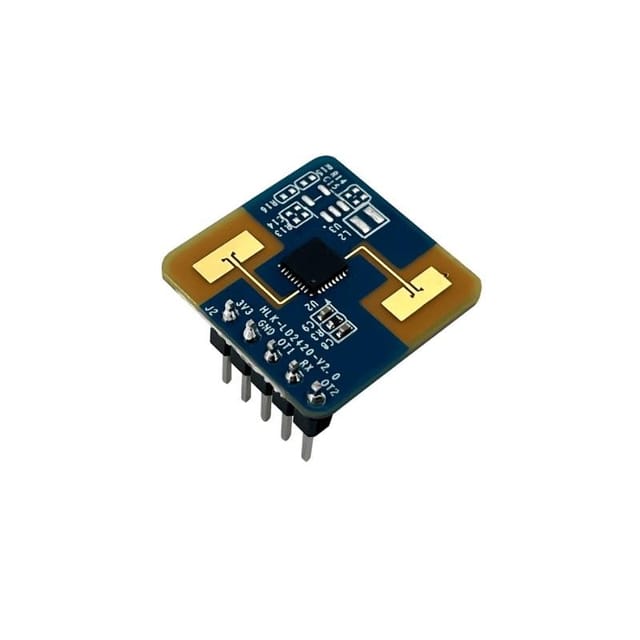

Hi-Link HLK-LD2420 24Ghz human body micro motion sensing detection radar sensor module HLK-LD2410 low cost solution
