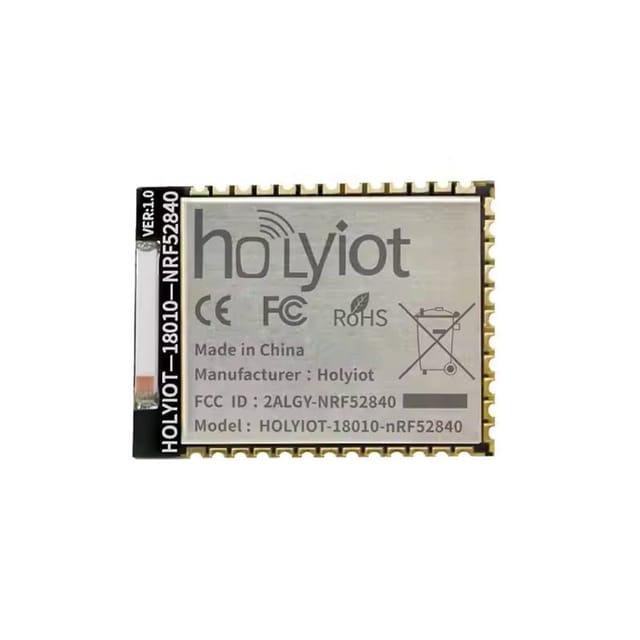

The Holyiot 18010 BLE module, powered by the advanced nRF52840 SoC, is designed for high-performance wireless applications. Featuring a 64 MHz ARM Cortex-M4F processor, 1MB Flash, 256KB RAM, and +8 dBm TX power, it supports multiple protocols like BLE, Zigbee, Thread, and 802.15.4. With USB, NFC-A, QSPI, and CryptoCell security, this module is ideal for IoT, wearables, audio, and secure wireless solutions.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Powered by nRF52840 SoC with 64 MHz ARM Cortex-M4F
2. Multiprotocol support: BLE, Bluetooth Mesh, Zigbee, Thread, 802.15.4, ANT, proprietary 2.4 GHz
3. Long-range wireless communication with +8 dBm TX power
4. Rich peripheral set: USB 2.0, QSPI, SPI, I2S, PDM, TWI, UART, ADC, PWM
5. Advanced cryptography with ARM TrustZone CryptoCell & AES-128
6. Low power consumption with adaptive power management

Package Includes:

1 x Holyiot 18010, Nrf52840 Long Range Chipset Ble Module
