6891f2cf698ab374ca26cbc0 Hongyan EC11H 7CE20P1ZY15F7 Rotary Encoder with Push Button Switch Vertical Plug-in 5-pin https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/6891f2d1698ab374ca26cbc2/hongyan_ec11h_7ce20p1zd20_rotary_encoder_with_push_button_switch_vertical_plug-in_5-pin_1.jpg

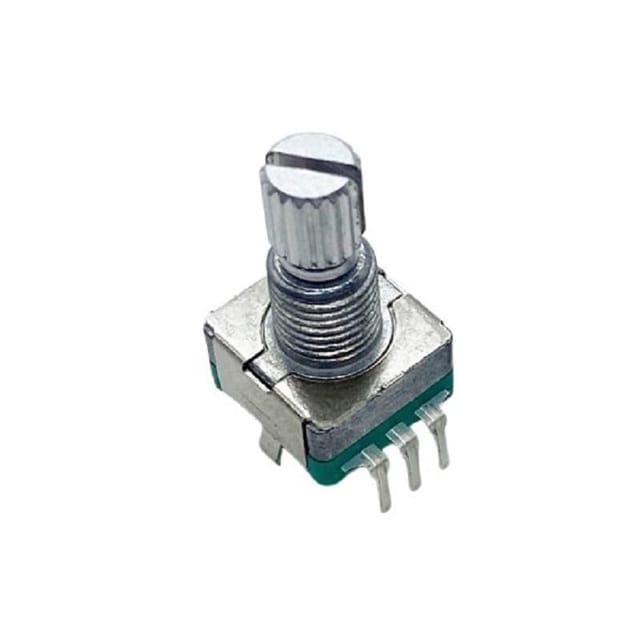

The Hongyan EC11H 7CE20P1ZY15F7 Rotary Encoder with Push Button Switch Vertical Plug-in 5-pin  is a vertical rotary encoder with a push-button switch and a 5-pin plug-in design. It ensures precise control and smooth operation, making it ideal for audio, control panels, and electronic applications.

Features:

  1. Protection: Dustproof and waterproof for reliable performance in challenging environments.
  2. Electrical Life: 50,000 cycles.
  3. Mechanical Life: 50,000 cycles.
  4. Operating Temperature: -35°C to 85°C.
  5. Housing Material: Tinplate for durability.
  6. Wiring: Plug-in type for easy installation.
  7. Certification: ROHS compliant.
  8. Pin Material: Brass, silver-plated for optimal conductivity.
  9. Product Range: EC11 series, known for precision and reliability.
  10. Ingress Protection: Customizable based on customer requirements.
  11. Installation dimensions: 21.5mm
  12. Pin type: quincunx
  13. Product type: 20 Pulse 20 Positioning

Packge Includes:

1 x Hongyan EC11H 7CE20P1ZY15F7 Rotary Encoder with Push Button Switch Vertical Plug-in 5-pin

 TT-RB-R185174
in stock INR
1 1
Hongyan_EC11H_7CE20P1ZD20_Rotary_Encoder_with_Push_Button_Switch_Vertical_Plug-in_5-pin_1.jpg

Hongyan EC11H 7CE20P1ZY15F7 Rotary Encoder with Push Button Switch Vertical Plug-in 5-pin

Sku: TT-RB-R185174
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Call for Pricing

Description of product

The Hongyan EC11H 7CE20P1ZY15F7 Rotary Encoder with Push Button Switch Vertical Plug-in 5-pin  is a vertical rotary encoder with a push-button switch and a 5-pin plug-in design. It ensures precise control and smooth operation, making it ideal for audio, control panels, and electronic applications.

Features:

  1. Protection: Dustproof and waterproof for reliable performance in challenging environments.
  2. Electrical Life: 50,000 cycles.
  3. Mechanical Life: 50,000 cycles.
  4. Operating Temperature: -35°C to 85°C.
  5. Housing Material: Tinplate for durability.
  6. Wiring: Plug-in type for easy installation.
  7. Certification: ROHS compliant.
  8. Pin Material: Brass, silver-plated for optimal conductivity.
  9. Product Range: EC11 series, known for precision and reliability.
  10. Ingress Protection: Customizable based on customer requirements.
  11. Installation dimensions: 21.5mm
  12. Pin type: quincunx
  13. Product type: 20 Pulse 20 Positioning

Packge Includes:

1 x Hongyan EC11H 7CE20P1ZY15F7 Rotary Encoder with Push Button Switch Vertical Plug-in 5-pin
