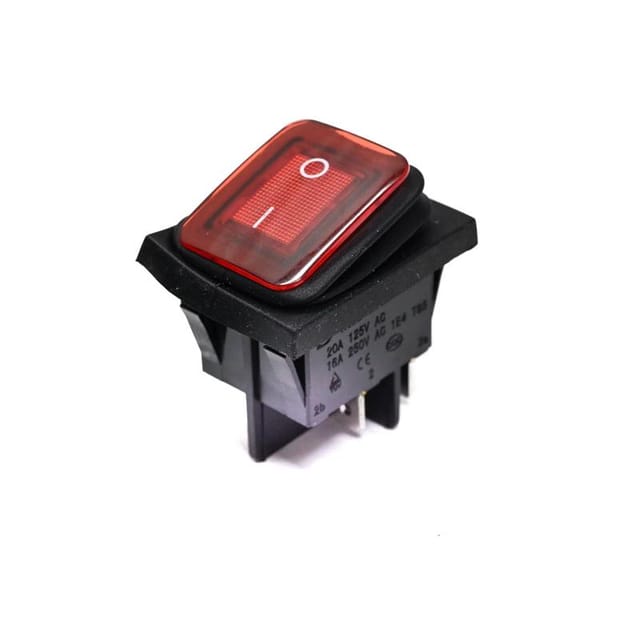

KCD2-2-201NW-Waterproof Rocker Switch With Lamp-4Pin(ON-OFF) switch provides high switching current in a compact design. It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing. They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.  This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.

Specifications:

1. Housing: Nylon 66
2. Button: Nylon 66
3. Terminal Brass with sliver plated
4. Rating: 20A 125VAC/16A 250VAC
5. Housing color: Standard black, white is avaliable
6. Switch Operation: (ON-OFF)
7. Contact configuration: DPST
8. Contact Resistance: 50 mΩ max
9. Operating Temperature: -25℃~+85℃
10. Insulation Resistance: 100mΩ min (500VDC)
11. Electrical Life: ≥ 10,000 Cycles
12. Dielectric strength: 1500VAC 1 minute
13. Mechanical Life: ≥ 100,000 Cycles
14. Certification: CE, CQC, SGS
15. OEM or ODM: Available

Package Includes:

1 x KCD2-2-201NW-Waterproof Rocker Switch With Lamp-4Pin(ON-OFF)
