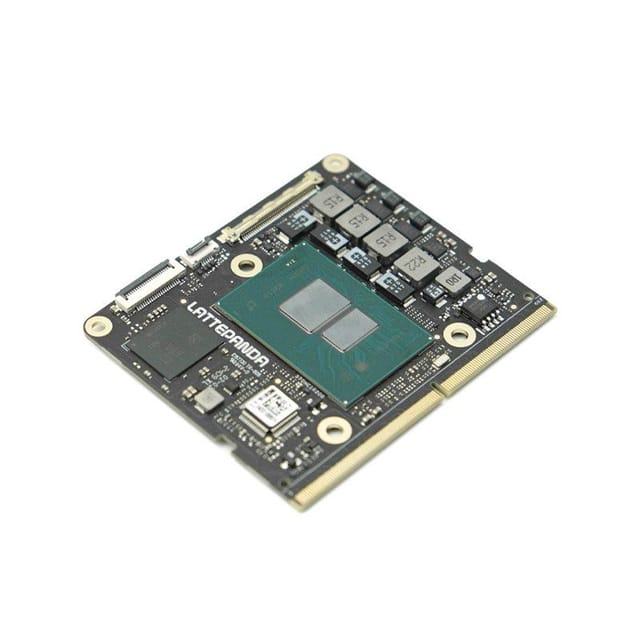

The LattePanda Mu is a compact x86 compute module powered by an Intel N100 quad-core processor, 8GB LPDDR5 RAM, and 64GB eMMC storage. Despite its card-sized 69.6mm x 60mm design, it offers rich expansion options like 9 PCIe lanes, up to 4 USB 3.2, HDMI/DisplayPort outputs, and dual SATA. With configurable TDP (6W–35W), Windows 11 Enterprise license, and multi-OS support, it’s perfect for embedded and industrial computing.

Features:

1. High Performance: Intel N100 processor with 4 cores and 3.4GHz boost
2. Efficient Memory: 8GB LPDDR5 4800MT/s RAM with IBECC
3. Integrated Storage: 64GB eMMC 5.1 onboard
4. Expandable I/O: 9 PCIe lanes, 2 SATA 3.0, up to 4 USB 3.2, 8 USB 2.0
5. Flexible Power Design: Configurable TDP from 6W to 35W
6. Versatile Display: Up to 3 HDMI/DisplayPort outputs at 4K@60Hz
7. Open-source Friendly: KiCAD carrier board design files available
8. Compact Design: Fits in tight spaces (69.6 x 60mm)
9. Multi-OS Support: Windows 10/11, Ubuntu
10. Custom Solutions: BIOS, carrier board, and OS customization available

Package Includes:

1 x LattePanda Mu – A Micro x86 Compute Module

1 x User Manual.
