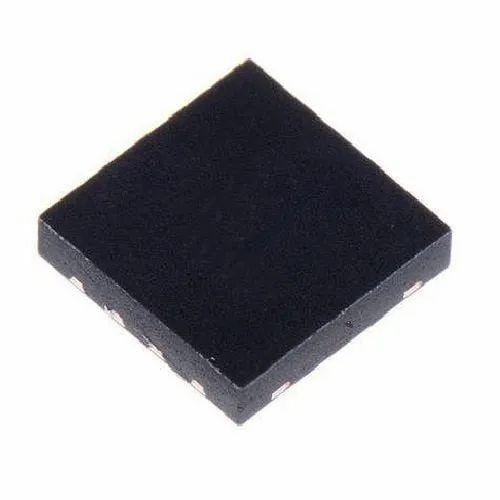

LD59150PUR-Stmicroelectronics-LDO Voltage Regulator, Adjustable, 0.8 V to 5.5 V in, 65 mV Drop, 0.8-3.6V/1.5A out, WFDFN-EP, 10Pin.

Note: Images for reference only.

Specifications:

Output Type: Adjustable
Input Voltage Max: 5.5V
Output Voltage – Nom: –
Output Voltage Max: 3.6V
Output Current Max: 1.5A
Dropout Voltage Typ @ Current: 65mV
IC Mounting: Surface Mount
No. of Pins: 10Pins
Operating Temperature Max: 125°C
MSL: MSL 1 – Unlimited
Input Voltage Min: 800mV
No. of Outputs: 1Outputs
Output Voltage Min: 800mV
Polarity: Positive Output
Max Output Current: 1.5A
Dropout Voltage – Typ @ Current: 65mV
IC Case / Package: WFDFN-EP
Operating Temperature Min: -40°C
Product Range: Adj 1.5A LDO Voltage Regulators
SVHC: No SVHC (23-Jan-2024)

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x LD59150PUR-Stmicroelectronics-LDO Voltage Regulator, Adjustable, 0.8 V to 5.5 V in, 65 mV Drop, 0.8-3.6V/1.5A out, WFDFN-EP, 10Pin
