The Microchip Technology Inc.MCP3008 8-Channel 10-Bit devices are successive approximation 10-bit Analogto-Digital (A/D) converters with on-board sample and hold circuitry.  The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential Non linearity (DNL) and Integral Non linearity (INL) are specified at ±1 LSB. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol.

The devices are capable of conversion rates of up to 200 ksps. The MCP3008 8-Channel 10-Bit operate over a broad voltage range (2.7V – 5.5V). Low-current design permits operation with typical standby currents of only 5 nA and typical active currents of 320 µA. The MCP3008 is offered in 16- pin PDIP and SOIC packages.

Features:

1. 10-bit resolution
2. ± 1 LSB max DNL
3. ± 1 LSB max INL
4. 8 (MCP3008) input channels
5. Analog inputs programmable as single-ended or pseudo-differential pairs
6.  On-chip sample and hold
7. SPI serial interface (modes 0,0 and 1,1)
8. Single supply operation: 2.7V – 5.5V
9. 200 ksps max. sampling rate at VDD = 5V
10. 75 ksps max. sampling rate at VDD = 2.7V
11. Low power CMOS technology • 5 nA typical standby current, 2 µA max.
12. 500 µA max. active current at 5V
13. Industrial temp range: -40°C to +85°C

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.



Package Includes:

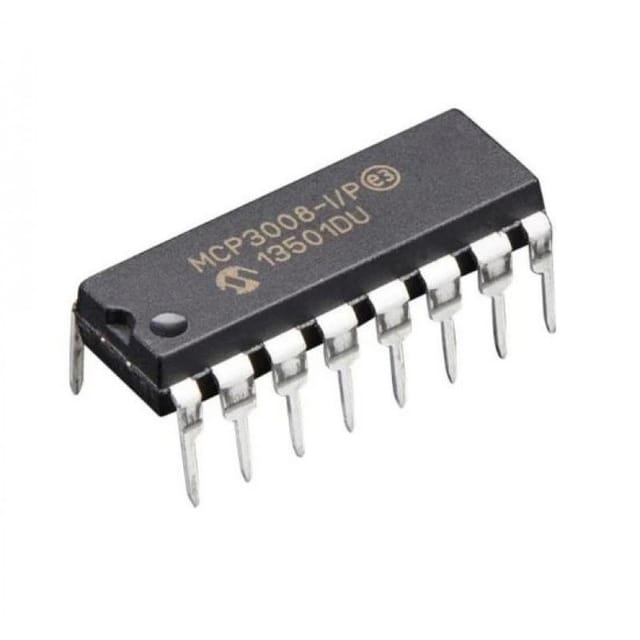

1 x MCP3008 8-Channel 10-Bit A/D Converter with SPI Interface IC DIP-16 Package
