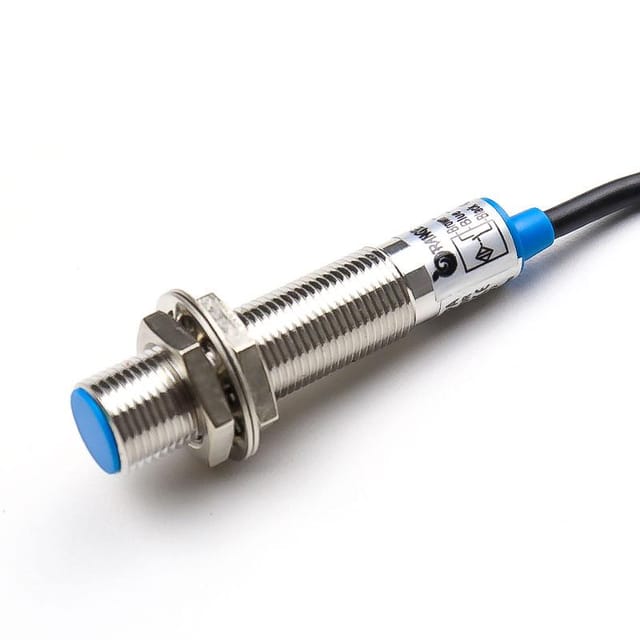

Pro-Range 2mm PNP Inductive Proximity Sensor RM12 DC6~36V (Shielded) is a brand new inductive proximity sensor that detects a metal object. Flush-style sensors actually have a shield that restricts the magnetic field so that it only radiates out of the face of the sensor.

This M12 indicates a cylinder type whose diameter is 12mm and cylinder length 57mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 2mm. The sensor has 3 wire NO (Normally open) type output with RED LED indicator.

Features:

1. IP67 protection structure (IEC standard).
2. Compact volume.
3. High precision of repeated location.
4. Diversified exterior.
5. Good performance of anti-interference.
6. Many output forms.
7. High on-off frequency.
8. Wide voltage range.
9. Dustproof, vibration proof, waterproof and oil proof.
10. With short-circuit protection and inverted connecting protection.
11. Long service life.

Applications:

1. Mine metallurgy.
2. Plastics, textile and Chemical Industry.
3. Light industry, tobacco, electric power, railway, and war industry.

Package Includes:

1 x Pro-Range 2mm PNP Inductive Proximity Sensor RM12 DC6~36V (Shielded).
