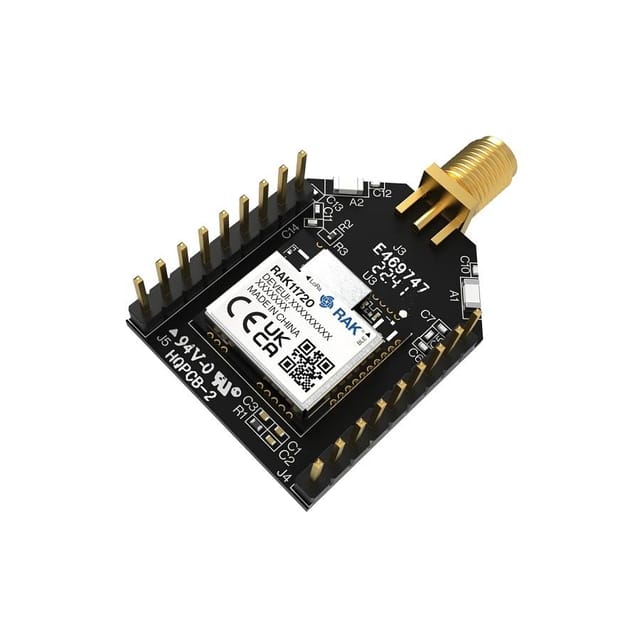

The RAKwireless WisDuo Breakout Board RAK11721 is a cutting-edge development platform tailored for IoT applications in the EU868, RU864, and IN865 frequency bands. This board integrates the RAK11721 LoRa module, designed for optimal performance in low-power, long-range communication, making it perfect for a variety of sensor and remote monitoring applications.

Features:

1. LoRa Technology: Leverages advanced LoRa modulation for extended range and superior signal penetration in challenging environments.
2. Multi-Band Compatibility: Supports various frequency bands, ensuring flexibility and compliance with regional regulations.
3. User-Friendly Interface: Offers a variety of I/O options, including UART, I2C, GPIO, and SPI, enabling easy integration with sensors and other peripherals.
4. Compact Design: Its small form factor allows for space-efficient deployments in diverse applications.
5. Wide Operating Voltage: Designed to operate within a supply voltage range of 2.0 V to 3.6 V, accommodating different power supply configurations.
6. Robust Temperature Range: Capable of functioning in extreme temperatures, from -40° C to 85° C, making it suitable for outdoor and industrial environments.
7. RUI3 API and AT Command Support: Simplifies development with easy-to-use programming interfaces, enhancing the development experience.

Specifications:

1. Based on: AMA3B1KK-KBR-B0 and SX1262
2. Breakout Board: For evaluation of the RAK11720
3. Onboard Antenna: Chip antenna for BLE
4. Antenna Connector: SMA connector for LoRa®
5. Microcontroller: ARM Cortex-M4F
6. Memory: 1MB Flash and 348KB SRAM
7. I/O Ports: UART/I2C/SPI/ADC/GPIO
8. Range: Greater than 15 km with optimized antenna
9. Power Consumption: Ultra-low power consumption of 2.37 μA in sleep mode
10. Supply Voltage: 1.8 V ~ 3.6 V
11. Temperature Range: -40° C ~ 85° C

Package Includes:

1 x RAKwireless WisDuo Breakout Board RAK11721 /800 MHz for EU868/RU864/IN865
