The SmartElex ESP32 WROOM with USB-C is a great place to get started with Espressif IoT ideations while still enjoying all the amenities of the original ESP32 WROOM Thing Plus. Espressif’s ESP32 WROOM is a powerful WiFi and Bluetooth® MCU module that targets a wide variety of applications. At the core of this module is the ESP32-D0WDQ6 chip which is designed to be both scalable and adaptive.
The SmartElex ESP32 WROOM with USB-C provides a µSD card slot, upgraded to a USB-C connector, integrated a RGB status LED and battery fuel gauge, and provided two voltage regulators; a separate 700mA current source for the board. It’s also important to point out that a CH340C serial-to-UART bridge is used on this board; unlike previous variants.
The ESP32 Thing plus integrates a rich set of peripherals, ranging from capacitive touch sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C, etc. The module also features 16MB of flash memory, 520kB of internal SRAM, an integrated 802.11 b/g/n WiFi transceiver with dual-mode Bluetooth® capabilities, and a JST connector to plug in a LiPo battery.
Features:
- Operating Voltage: 2.3 to 3.6 V
- Operating Temperature: -40 to 85 °C
- MAX17048 Fuel Gauge
- USB-C Connector
- Integrated 802.11b/g/n WiFi 2.4GHz transceiver
Specifications:
ESP32 WROOM Module:
- 21 Multifunctional GPIO
- Up to thirteen 12-bit ADC Channels
- Up to two DAC channels
- Up to sixteen PWM outputs
- Up to eight capacitive touch pins
- Up to three SPI Busses (only one is configured by default in the Arduino IDE)
- An available I2S Audio Output
- Up to two I2C Busses (only one is configured by default in the Arduino IDE)
- Up to two UARTs (only two are configured by default in the Arduino IDE, one UART is used for bootloading/debug)
ESP32 WROOM General Features:
- Operating Voltage: 2.3 to 3.6 V
- 2.5 µA deep sleep current
- 80 mA average operating current
- Operating Temperature: -40 to 85 °C
- Xtensa® Single-Core 32-bit LX6 Microprocessor (up to 240MHz)
- 448KB of ROM and 520KB SRAM
- 16MB of Embedded SPI flash storage
- Integrated 802.11b/g/n WiFi 2.4GHz transceiver.
Package Includes:
1 x SmartElex ESP32 WROOM_C Development Board – 1 PCS
- Home
- MARKETPLACE
- SmartElex ESP32 WROOM_C Development Board – 1 PCS

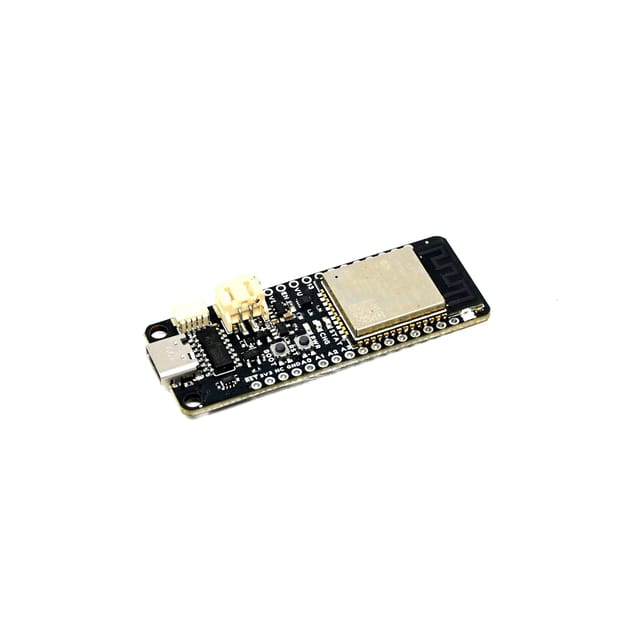

SmartElex ESP32 WROOM_C Development Board – 1 PCS
SIZE GUIDE
- Shipping in 10-12 Working Days
Description of product
The SmartElex ESP32 WROOM with USB-C is a great place to get started with Espressif IoT ideations while still enjoying all the amenities of the original ESP32 WROOM Thing Plus. Espressif’s ESP32 WROOM is a powerful WiFi and Bluetooth® MCU module that targets a wide variety of applications. At the core of this module is the ESP32-D0WDQ6 chip which is designed to be both scalable and adaptive.
The SmartElex ESP32 WROOM with USB-C provides a µSD card slot, upgraded to a USB-C connector, integrated a RGB status LED and battery fuel gauge, and provided two voltage regulators; a separate 700mA current source for the board. It’s also important to point out that a CH340C serial-to-UART bridge is used on this board; unlike previous variants.
The ESP32 Thing plus integrates a rich set of peripherals, ranging from capacitive touch sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C, etc. The module also features 16MB of flash memory, 520kB of internal SRAM, an integrated 802.11 b/g/n WiFi transceiver with dual-mode Bluetooth® capabilities, and a JST connector to plug in a LiPo battery.
Features:
- Operating Voltage: 2.3 to 3.6 V
- Operating Temperature: -40 to 85 °C
- MAX17048 Fuel Gauge
- USB-C Connector
- Integrated 802.11b/g/n WiFi 2.4GHz transceiver
Specifications:
ESP32 WROOM Module:
- 21 Multifunctional GPIO
- Up to thirteen 12-bit ADC Channels
- Up to two DAC channels
- Up to sixteen PWM outputs
- Up to eight capacitive touch pins
- Up to three SPI Busses (only one is configured by default in the Arduino IDE)
- An available I2S Audio Output
- Up to two I2C Busses (only one is configured by default in the Arduino IDE)
- Up to two UARTs (only two are configured by default in the Arduino IDE, one UART is used for bootloading/debug)
ESP32 WROOM General Features:
- Operating Voltage: 2.3 to 3.6 V
- 2.5 µA deep sleep current
- 80 mA average operating current
- Operating Temperature: -40 to 85 °C
- Xtensa® Single-Core 32-bit LX6 Microprocessor (up to 240MHz)
- 448KB of ROM and 520KB SRAM
- 16MB of Embedded SPI flash storage
- Integrated 802.11b/g/n WiFi 2.4GHz transceiver.
Package Includes:
1 x SmartElex ESP32 WROOM_C Development Board – 1 PCS
