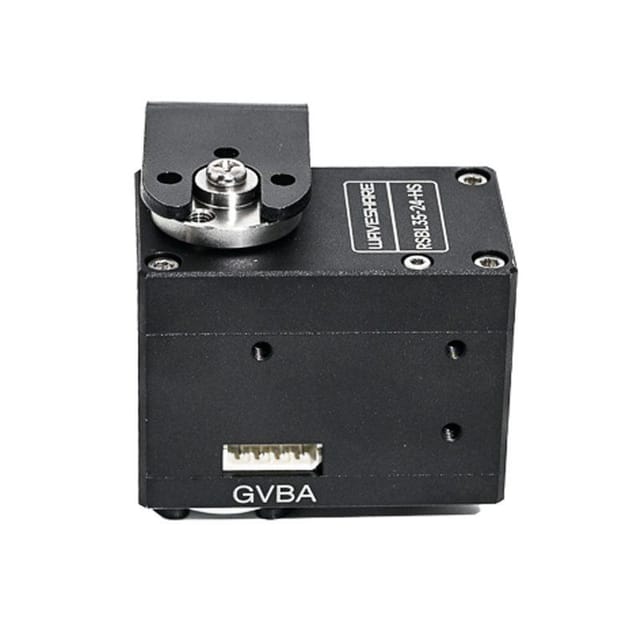

The Waveshare 35KG.cm RS485 Servo Motor, High Precision And Large Torque, Aluminum Alloy Case, With Programmable 360° Magnetic Encoder, Multiple Operation Modes Switchable brushless motor designed for robotics and automation. It features a 360° magnetic encoder with 12-bit resolution for accurate positioning, and it supports multiple operation modes like Angle Mode, Speed Mode, and Step Mode. The RS485 Servo Motor offers real-time feedback (position, load, speed, etc.) and is equipped with a durable aluminum alloy case for heat resistance. It can be controlled via an RS485 interface, supporting up to 253 motors on a single bus. Ideal for robotic arms, quadruped robots, and other advanced robotic projects.

 Useful Link:

https://www.waveshare.com/wiki/RSBL35-24-HS

 Features:

1. High Torque: Available in 35 kg.cm torque options, making it suitable for high-load applications.
2. 360° Rotation: Offers full-range rotation with programmable position control.
3. High Precision: 360° magnetic encoder with 12-bit resolution, enabling precise positioning and feedback.
4. Multiple Operation Modes: Choose between Angle Mode, Speed Mode, and Step Mode for versatile control based on the application needs.
5. Real-Time Feedback: Provides feedback on position, load, speed, input voltage, current, and temperature, ensuring smooth operation and protection against overload or overheating.
6. Easy Calibration: One-button middle position calibration simplifies installation and setup.
7. Closed-Loop Control: Ensures the motor performs consistently by adjusting for varying loads, improving lifespan and reliability.

Applications:

1. Robotics: Perfect for robotic arms, quadruped robots, hexapod walkers, and other robotic systems requiring precise control and high torque.
2. Automation: Used in industrial applications that require efficient, high-torque motion control.
3. Research & Development: Excellent for prototyping and testing in advanced robotic and automation projects.

Package include:

1 x Waveshare 35KG.cm RS485 Servo Motor, High Precision And Large Torque, Aluminum Alloy Case, With Programmable 360° Magnetic Encoder, Multiple Operation Modes Switchable
