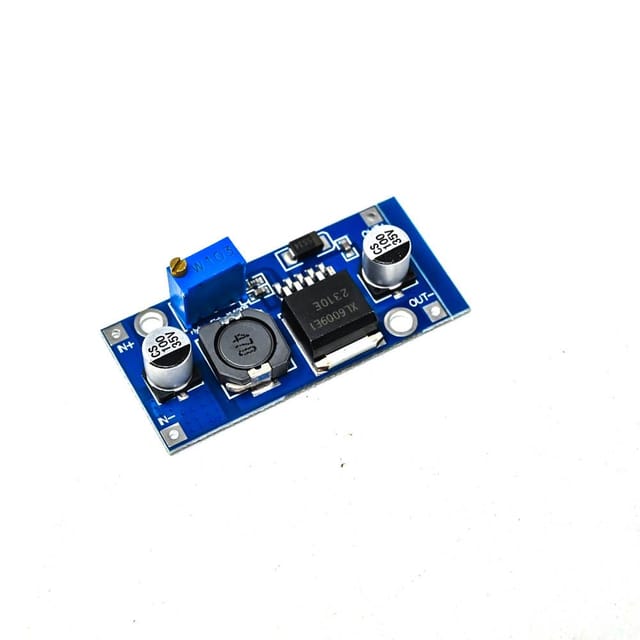

This XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.

It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.

High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller

Pins

• IN+ input positive
• IN- input negative!
• OUT+ output positive
• OUT- output negative

Features :

1. The performance is much higher than LM2577.
2. Non-isolated Boost converter.
3. It has a non-synchronous rectifier.
4. Small and Handy voltage regulator module.

Package Includes :

1 x CN6009 XL6009 DC-DC Step-up converter module.
